Home > products > Discrete Magnetic Transformers > TG5G-S12NZ5LF 24Pin 5G 350mA SMT Telecom Transformer POE+

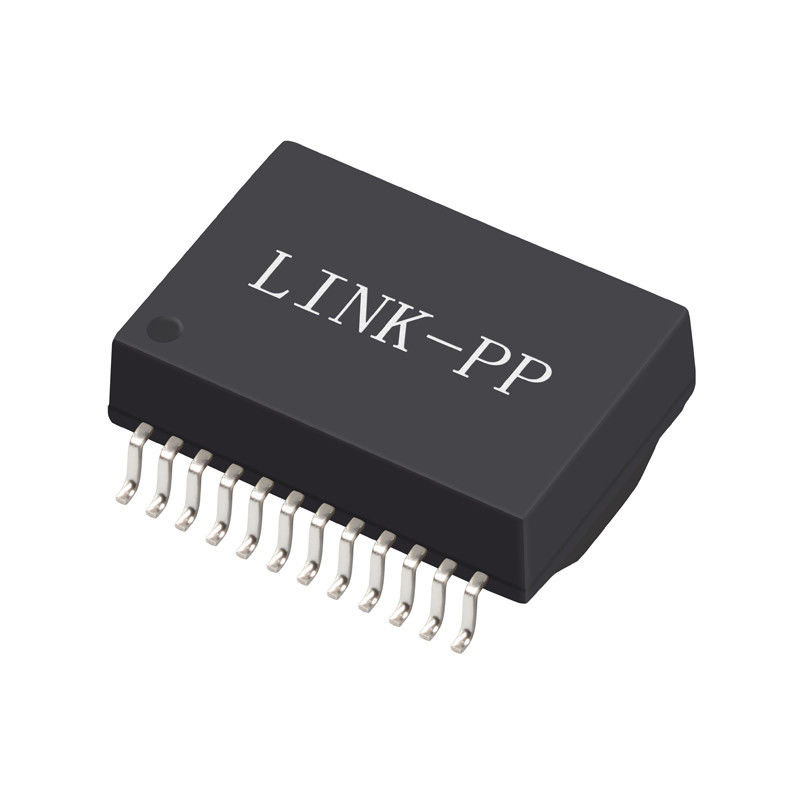

TG5G-S12NZ5LF 24Pin 5G 350mA SMT Telecom Transformer POE+

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: TG5G-S12NZ5LF

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

SMT Telecom Transformer POE+

,

5G 350mA SMT Telecom Transformer

,

SMT Telecom Transformer TG5G-S12NZ5LF

Specification:
TG5G-S12NZ5LF
Updated PN:
LP72426ANL
Speed:
5G_bit
Number Of Ports:
Single
Application:
Lan Ethernet(PoE+)
Package:
SMD
PIN Number:
24
Temperature:
0 To +70℃
Archivi Disponibil:
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Lifecycle::
More Than 20Years
Specification:
TG5G-S12NZ5LF
Updated PN:
LP72426ANL
Speed:
5G_bit
Number Of Ports:
Single
Application:
Lan Ethernet(PoE+)
Package:
SMD
PIN Number:
24
Temperature:
0 To +70℃
Archivi Disponibil:
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Lifecycle::
More Than 20Years
TG5G-S12NZ5LF 24Pin 5G 350mA SMT Telecom Transformer POE+
TG5G-S12NZ5LF 24Pin 5G 350mA SMT Telecom Transformer

Detailed Information:

TG5G-S12NZ5LF 24Pin 5G 350mA SMT Telecom Transformer
LINK-PP Part Number LP72426ANL
Speed 5G BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (PoE+)
Package SMD
Temperature 0 to +70℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX C,T
Configuration TX C,T
Construction OPEN FRAME
Cores Per Port 8
Number of Ports SINGLE
Package Height (Inches) 0.236
Package Height (mm) 6.00
Package Length (Inches) 0.715
Package Length (mm) 18.15
Package Width (Inches) 0.630
Package Width (mm) 16.00
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

TG5G-S12NZ5LF 24Pin 5G 350mA SMT Telecom Transformer POE+ 0
