Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: TG5G-HPE10NZ5LF
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
TG5G-HPE10NZ5LF |
Updated PN: |
LP72426ANL |
Speed: |
5G_bit |
Number Of Ports: |
Single |
Application: |
Lan Ethernet(PoE+) |
Package: |
SMD |
PIN Number: |
24 |
Temperature: |
0 To +70℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle：: |
More Than 20Years |
Specification: |
TG5G-HPE10NZ5LF |
Updated PN: |
LP72426ANL |
Speed: |
5G_bit |
Number Of Ports: |
Single |
Application: |
Lan Ethernet(PoE+) |
Package: |
SMD |
PIN Number: |
24 |
Temperature: |
0 To +70℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle：: |
More Than 20Years |

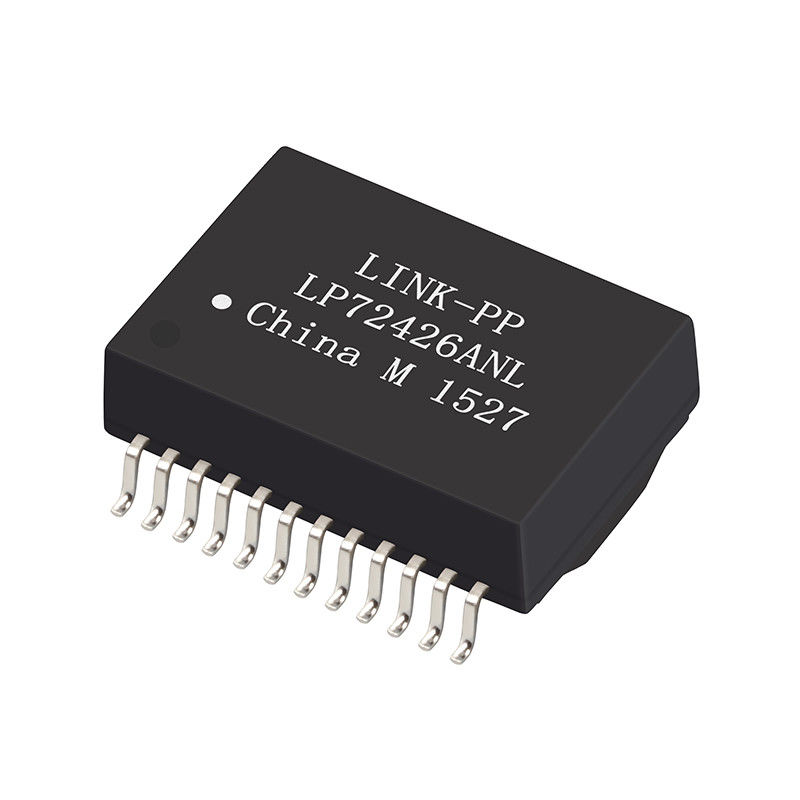

TG5G-HPE10NZ5LF 5G 1A POE+ 24Pin SMD Transformer Modules
Detailed Information:
| TG5G-HPE10NZ5LF 5G 1A POE+ 24Pin SMD Transformer Modules | |
| LINK-PP Part Number | LP72426ANL |
| Speed | 5G BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (PoE+) |
| Package | SMD |
| Temperature | 0 to +70℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | C,T |
| Configuration TX | C,T |
| Construction | OPEN FRAME |
| Cores Per Port | 8 |
| Number of Ports | SINGLE |
| Package Height (Inches) | 0.236 |
| Package Height (mm) | 6.00 |
| Package Length (Inches) | 0.715 |
| Package Length (mm) | 18.15 |
| Package Width (Inches) | 0.630 |
| Package Width (mm) | 16.00 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.06-$3.2 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
|
