Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H5007NLT
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: $0.06-$3.2 can be negotiable
Packaging Details: Tape & Reel--300/ReeReel
Delivery Time: 3-7 days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6KK/Month
PN: |
H5007NLT |
Mounting Type: |
Surface Mount |
Turns Ratio: |
1CT : 1CT |
Dimension: |
17.53mm X 16mm X 5.72mm |
Temperature: |
0°C ~ 70°C |
Number Of Channels/Ports: |
Single |
PN: |
H5007NLT |
Mounting Type: |
Surface Mount |
Turns Ratio: |
1CT : 1CT |
Dimension: |
17.53mm X 16mm X 5.72mm |
Temperature: |
0°C ~ 70°C |
Number Of Channels/Ports: |
Single |
|

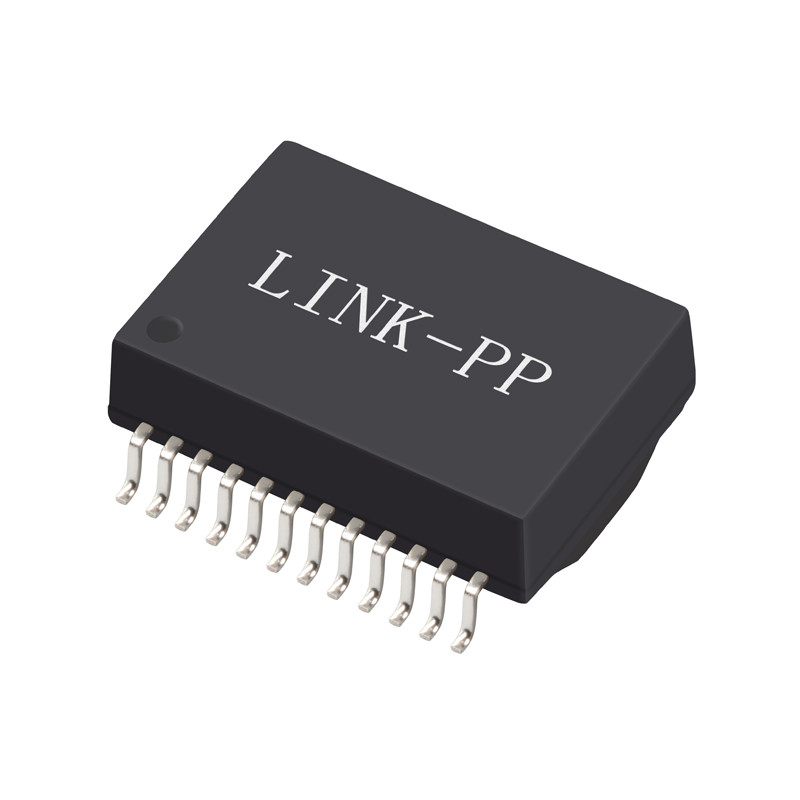

H5007NLT 1000BASE-T Magnetics Module Designed to Support 1:1 Turns Ratio Transceivers |
|
| Series | H5007 Pulse Transformers |
|
Part Number |
H5007NLT |
|
Transformer Type |
LAN 1000Base-T |
|
Number of Ports |
SINGLE |
|
Application |
ETHERNET TRANSFORMER/CHOKE |
|
Mounting |
SMT |
|
Temperature |
0 to +70℃ |
|
PoE |
NON-POE |
|
Safety Insulation |
YES |
|
Lead Quantity |
24Pins |
| Electrical Specifications @ 25℃Operating Temperature 0°C to 70°C | |
| Turns Ratio | |
|
Insertion Loss |
1.0dB MAX @ 1-100MHz |
|
Return Loss |
-18dB MIN @ 1-30MHz -18dB MIN @ 40MHz -16dB MIN @ 50MHz -12dB MIN @ 60-80MHz -160dB MIN @ 100MHz |
|
Differential to Common Mode Rejection |
-43dB MIN @ 30MHz -37dB MIN @ 30MHz -33dB MIN @ 100MHz |
|
Crosstalk |
-43dB MIN @ 30MHz -37dB MIN @ 30MHz -33dB MIN @ 100MHz |
|
Hipot |
1500Vrms |
