TG110-AEX50N5LF 10/100 Base-T Ethernet Transformer SMT 16PIN

TG110-AEX50N5LF Automotive Ethernet Transformer Overview

The TG110-AEX50N5LF Ethernet Transformer is a high-reliability AEC-Q200 qualified single-port 10/100BASE-T LAN isolation transformer specifically developed for harsh automotive communication environments. Designed by HALO Electronics for in-vehicle infotainment and Ethernet-based ECU networking, this SMD transformer provides stable signal isolation, superior common-mode noise suppression, and long-term thermal durability under automotive Grade 1 temperature conditions.

With a 350µH minimum OCL, 1CT:1CT transmit/receive turns ratio, 1500Vrms Hi-Pot isolation, and an extended -40°C to +125°C operating range, TG110-AEX50N5LF is widely used in:

• Automotive infotainment head units
• ADAS communication modules
• Ethernet gateway ECUs
• Rear-seat entertainment systems
• Telematics control units (TCU)
• Industrial harsh-environment 10/100 Ethernet nodes

For engineers seeking a qualified alternative to TG110-AEX50N5LF, LINK-PP offers fully compatible automotive Ethernet magnetic transformer solutions LP1188NL with equivalent electrical and mechanical performance.

TG110-AEX50N5LF Ethernet Transformer Key Specifications

TG110-AEX50N5LF SMT Transformer Datasheet - Dimension

Applications of TG110-AE050N5LF 10/100 Base-T LAN Transformer

TG110-AEX50N5LF is engineered for robust 10/100 Ethernet communication isolation in:

• Automotive Infotainment Systems
• In-Vehicle Networking (IVN)
• ADAS Sensor Connectivity
• Industrial Ethernet in High-Temperature Environments

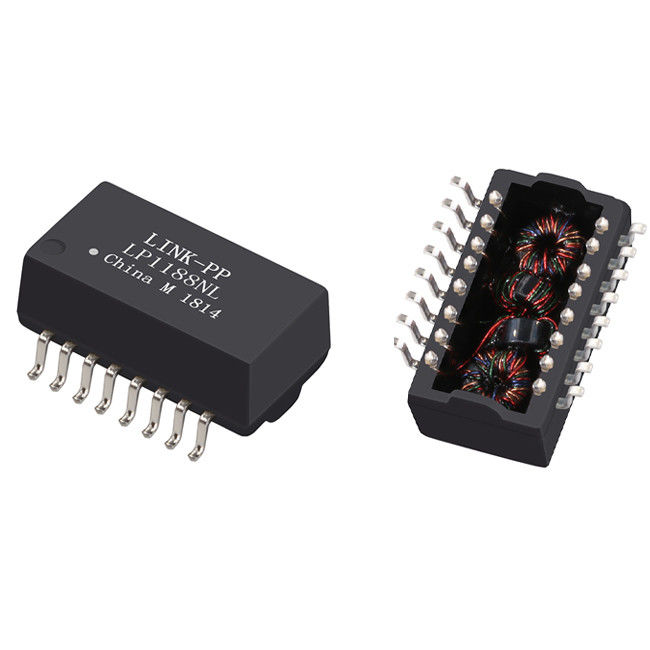

TG110-AEX50N5LF Equivalent Part LP1188NL from LINK-PP

LINK-PP provides automotive Ethernet magnetic transformer alternatives LP1188NL designed for customers who need:

• BOM cost reduction,
• stable long-term supply,
• PPAP/automotive project support,
• or HALO replacement sourcing.

Our equivalent solutions provide:

• matched 10/100BASE-T electrical parameters,
• 1500Vrms isolation protection,
• AEC-Q200 grade manufacturing process,
• SMT compatible package dimensions,
• and engineering sample support for validation.

Why choose LINK-PP as your automotive Ethernet magnetics supplier?

• Automotive communication magnetic component specialist
• OEM/ODM customization available
• Fast sampling for validation projects
• Bulk production support
• Stable global supply chain
• Professional magnetic parameter matching service
