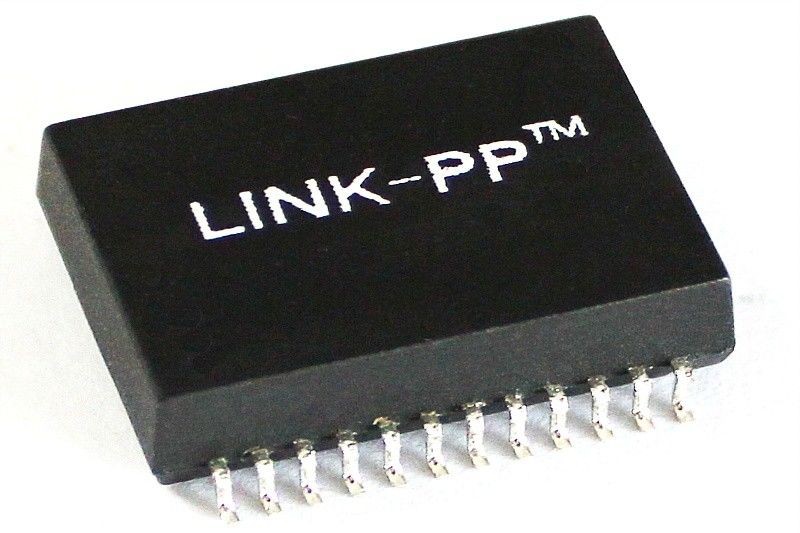

GS5008 HF , LP5008ANLE Ethernet Magnetic 1000Base-T Transformer Single Port

Name: GS5008 HF , LP5008ANLE Ethernet Magnetic 1000Base-T Transformer Single Port
Brand: LINK-PP
SKU: GS5008 HF
Price: 0.06 USD
Availability: InStock
Rating: 4.9 (153 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: GS5008 HF

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                10/100base-t magnetics, gigabit magnetics transformer


Specification:	GS5008 HF	P/N:	LP5008ANLE
Ethernet:	1xG-bit Ethernet	Measure:	13.64x18.80x5.72mm
Mounting:	SMD	Samples:	Available
Archivi Disponibili:	PDF/3D/ISG/Stp/Step/Datasheet

Specification:	GS5008 HF
P/N:	LP5008ANLE
Ethernet:	1xG-bit Ethernet
Measure:	13.64x18.80x5.72mm
Mounting:	SMD
Samples:	Available
Archivi Disponibili:	PDF/3D/ISG/Stp/Step/Datasheet

GS5008 HF , LP5008ANLE Ethernet Magnetic 1000Base-T Transformer Single Port

GS5008 HF , LP5008ANLE Ethernet Magnetic 1000Base-T Transformer Single Port

1.Coil Number: 12

2.Coil Structure:Toroidal

3.SMT,24Pins GS5008 HF 1000 BASE-T MAGNETICS MODULES

4.gigabit ethernet transformer Compliant with IEEE 802.3ab standard for 1000 BASE-T.

5. LP5008ANLE Compatible to GS5008 HF

6. Supports 4 pairs of category 5 UTP cable.

Electrical Specifications(25):
1. Turns Ratio50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min

50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms Min

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
