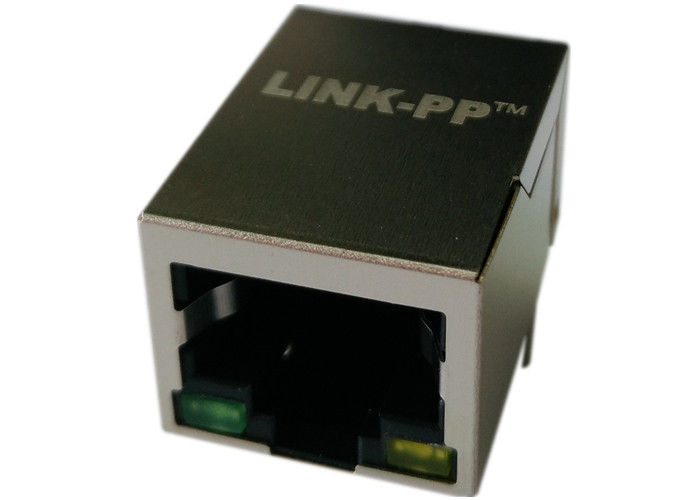

LPJ4017HBNL RJ45 Single Port , 1x10/100 Ethernet With Magnetic / LED

Name: LPJ4017HBNL RJ45 Single Port , 1x10/100 Ethernet With Magnetic / LED
Brand: LINK-PP
SKU: LPJ4017HBNL
Price: 0.09 USD
Availability: InStock
Rating: 4.8 (188 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJ4017HBNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                single port rj45, rj45 smd connector


Part No:	LPJ4017HBNL	Ethernet:	1x 10/100Mbps Fast Ethernet
Manufacturer:	LINK-PP	Mounting:	R/A Shield
Indicator:	LED Flexible	Samples:	Available

Part No:	LPJ4017HBNL
Ethernet:	1x 10/100Mbps Fast Ethernet
Manufacturer:	LINK-PP
Mounting:	R/A Shield
Indicator:	LED Flexible
Samples:	Available

LPJ4017HBNL RJ45 Single Port , 1x10/100 Ethernet With Magnetic / LED

LPJ4017HBNL
1x10/100Base-Tx Fast Ethernet Rj45
1X1 Tab-down Without Panel-tab
Rj45 Integrated Magnetics PCb Layout

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(± 2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@ 100KHz/0.1V 8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 0.3-100MHz
4.Return Loss(@100Ω):
-18dB MIN @ 1-30MHz
-16dB MIN @ 40MHz
-14dB MIN @ 50MHz
-12dB MIN @ 60-80MHz
5.Cross talk:
-45dB MIN @ 30MHz
-40dB MIN @ 60MHz
-35dB MIN @ 100MHz

6.Common Mode Rejection:
-35dB MIN @ 30MHz
-30dB MIN @ 60MHz
-25dB MIN @ 100MHz
7.Hipot Test:1500Vrms MIN
8.Operating Temperature Range: -40℃ TO +85℃

LPJ4017HBNL RJ45 Single Port , 1x10/100 Ethernet With Magnetic / LED 1
