1000Base-T Ethernet Magnetic Transformers,XFGIB100 Single Port Ethernet Card

China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

1000Base-T Ethernet Magnetic Transformers,XFGIB100 Single Port Ethernet Card

1000Base-T Ethernet Magnetic Transformers,XFGIB100 Single Port Ethernet Card
1000Base-T Ethernet Magnetic Transformers,XFGIB100 Single Port Ethernet Card 1000Base-T Ethernet Magnetic Transformers,XFGIB100 Single Port Ethernet Card

Large Image :  1000Base-T Ethernet Magnetic Transformers,XFGIB100 Single Port Ethernet Card

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: XFGIB100

Payment & Shipping Terms:

Minimum Order Quantity: 350/1400
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Detailed Product Description
Spec: XFGIB100 PN: LP5007NL
Ethernet: 1x10/100/1000Base-T Samples: Free
High Light:

10/100base-t magnetics

,

gigabit magnetics transformer

Compatible Pin To PIn XFGIB100 Single Port Ethernet Magnetics

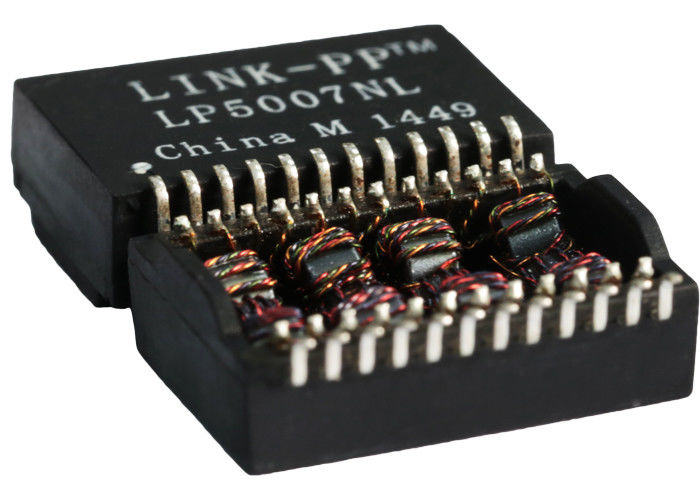

1.Single Port Lan Transformer LP5007NL
2.ColiStructure: Toroidal
3.1000base-t transformer
4.SMD, 24 pins

10/100/1000BASE-TX Single Port Lan Transformer With 24 Pins
1000Base-T Ethernet Magnetic Transformers,XFGIB100 Single Port Ethernet Card 0
Description:

Single Port Gigabit ETHERNET MAGNETIC TRANSFORMERS

Application
LAN ETHERNET(PoE&NON PoE)
AutomDX
YES
Comment
RoHS Compliant LP5007NL
Configuration RX
T,C
Configuration TX
T,C
Construction
TRANSFER MOLD
Cores Per Port
12
Number of Ports
QUAD
PCB
NO PCB
Package
SMT
Package Height (Inches)
0.225 or other
Package Height (mm)
5.715 or other
Package Length (Inches)
1.12 or other
Package Length (mm)
28.448 or other
Package Width (Inches)
0.63 or other
Package Width (mm)
16.002 or other
RoHS Compliant
YES-RoHS-6
Speed
10/100/1000BASE-TX
Temperature
0 TO 70/-40 To +85
Turns Ratio RX
1CT:1CT
Turns Ratio TX
1CT:1CT
Main P/N
LP5007NL, etc
1000Base-T Ethernet Magnetic Transformers,XFGIB100 Single Port Ethernet Card 1
Electrical Specifications(25):
1. Turns Ratio50KHz, 0.5V
      Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
            40MHz: -14.4dB Min
            50MHz: -13.1dB Min
            60-80MHz: -12dB Min
            100MHz: -10dB Min
5. Differential to Common Mode Rejection:
            30MHz: -45dB Min
            60MHz: -40dB Min
            100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
            60MHz: -35dB Min
            100MHz: -30dB Min
7. Hi-Pot: 1500Vrms Min

Applications:

Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

16 years production experience,
2600 staff,
100% test
Flexible delivery time

Contact Details
LINK-PP INT'L TECHNOLOGY CO., LIMITED

Contact Person: Amanda.y@link-pp.com

Tel: +8618665915096

Send your inquiry directly to us (0 / 3000)
