H1012NL Lan Isolation Transformer 10/100 Base - T Single Port Modular Connector

China H1012NL Lan Isolation Transformer 10/100 Base - T Single Port Modular Connector supplier

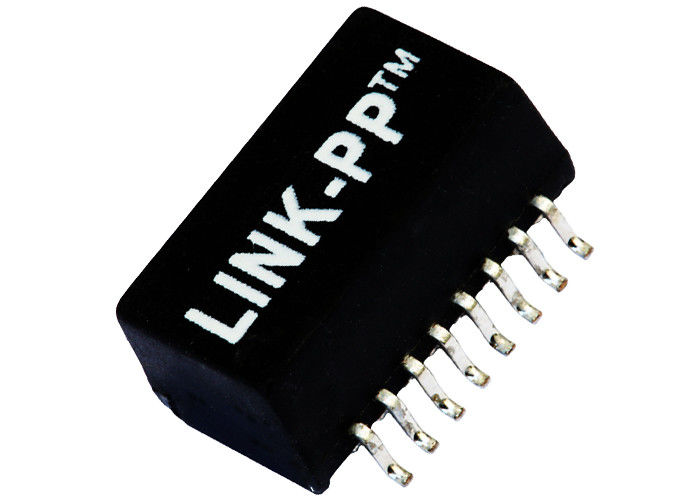

Large Image :  H1012NL Lan Isolation Transformer 10/100 Base - T Single Port Modular Connector

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: H1012NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
PN: H1012NL Made In China: SM-LP1012NLE
Interface: 10/100 Base-t Samples: Free Available
Number Of Ports: Single Port Application - Lan: Ethernet (NON PoE)
Package: SMD Temperature: 0℃ TO 70℃
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

H1012NL Lan Isolation Transformer 10/100Base-T Single Port Modular Connector
1.Single Port Lan Transformer
2.ColiStructure: Toroidal
3.100base-t transformer
4.SMD, 16 pins



Electrical Specifications @25℃
1.Turns Ratio:
  TX = 1CT∶1       RX = 1CT∶1CT
2.OCL: 350uH MIN
  @100KHz,100mV,8mA DC Bias
3.Insertion Loss:
  0.1-100MHz:-1.0dB MAX
4.Return Loss(dB MIN @100Ω):
  1-30MHz:-20    40MHz:-20
  50MHz:-18      60-80MHz:-14
5.Crosstalk(dB TYP):
  30MHz:-50      60MHz:-40
  100MHz:-40
6.DCMR(dB MIN):
  30MHz:-42      60MHz:-36
  100MHz:-33
7.Hipot: 1500Vrms MIN
8.Operating Temperature: 0℃~70℃

H1012NL Lan Isolation Transformer 10/100 Base - T Single Port Modular Connector
Application:

● HUB,
● PC card,
● Switch,
● Router,
● SDH,
● PDH,
● IP Phone,
● xDSL modem,
PC Main board.
H1012NL Lan Transformer 10/100Base-T Single Port Modular Connector
