Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H1174NLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
H1174NLT |
PN: |
LP1174NL |
Package: |
SMD |
PIN Number: |
24 |
Size: |
13.08mm L X 12.70mm W 3.93mmH |
Ports: |
Dual |
Temperature: |
0 TO + 70℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
H1174NLT |
PN: |
LP1174NL |
Package: |
SMD |
PIN Number: |
24 |
Size: |
13.08mm L X 12.70mm W 3.93mmH |
Ports: |
Dual |
Temperature: |
0 TO + 70℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

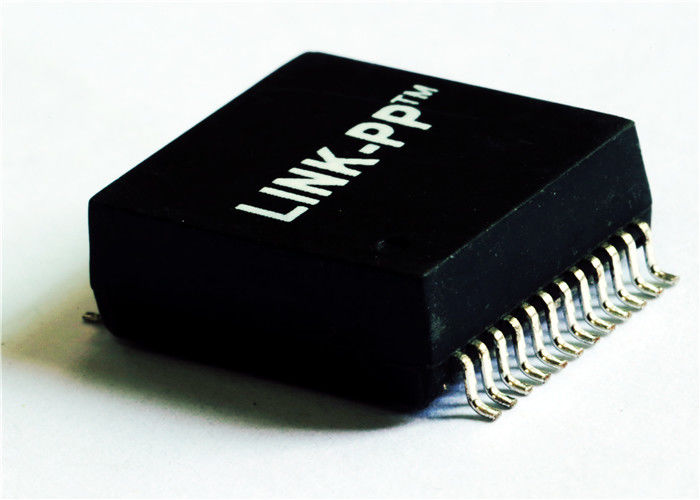

XFRMR MODULE 2PORT 1:1 10/100
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Detailed Information:
| LINK-PP LP1174NL 100% CROSS PULSE H1174NLT | |
| LINK-PP Part Number | LP1174NL |
| Pulse Part Number | H1174NLT |
| Speed | 10/100BASE-T |
| Number of Ports | Dual |
| Application - LAN | ETHERNET (NoN PoE) |
| Package | SMT |
| Temperature | 0℃ TO +70℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 12 |
| Package Height (Inches) | 0.145 |
| Package Height (mm) | 3.680 |
| Package Length (Inches) | 0.515 |
| Package Length (mm) | 13.08 |
| Package Width (Inches) | 0.620 |
| Package Width (mm) | 15.75 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
