Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HX1260NLT
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Item No: |
HX1260NLT |
Manufacturer PN: |
LP1188NL |
Ethernet: |
10/100Mbps |
TX/RX: |
1CT:1CT |
Hipot: |
1500V |
Mounting Type: |
SMD |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Item No: |
HX1260NLT |
Manufacturer PN: |
LP1188NL |
Ethernet: |
10/100Mbps |
TX/RX: |
1CT:1CT |
Hipot: |
1500V |
Mounting Type: |
SMD |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Detailed Information:

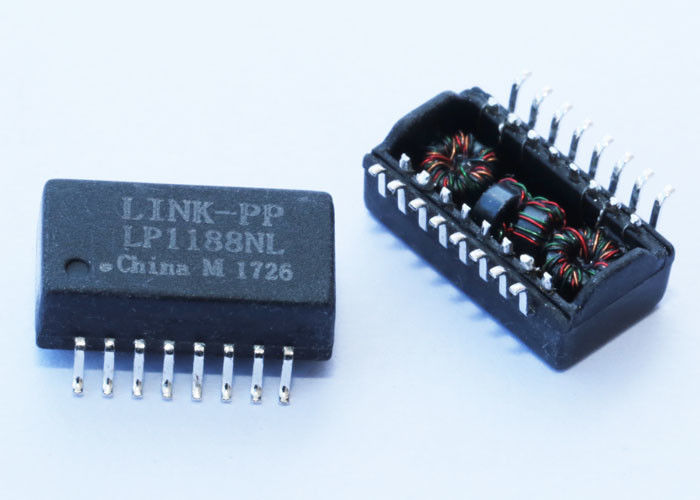

| LINK-PP LP1188NL | |
| Specifications | HX1260NL / HX1260NLT |
| PN | LP1188NL |
| Speed | 10/100BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (NoN PoE) |
| Package | SMD |
| Temperature | -40℃ TO +85℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 4 |
| Package Height (Inches) | 0.235 |
| Package Height (mm) | 5.97 |
| Package Length (Inches) | 0.500 |
| Package Length (mm) | 12.70 |
| Package Width (Inches) | 0.420 |
| Package Width (mm) | 10.67 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
