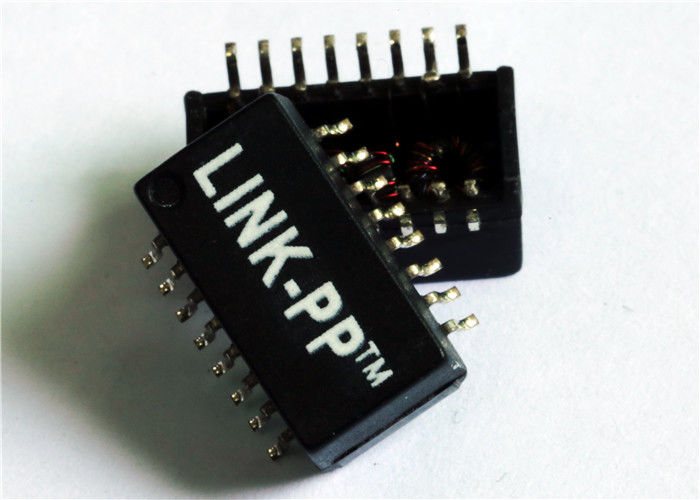

H1302NL ,H1302NLT 10/100 Transformer XFRMR MAGNETIC 1PORT 1:1 , LP1302NL

Name: H1302NL ,H1302NLT 10/100 Transformer XFRMR MAGNETIC 1PORT 1:1 , LP1302NL
Brand: LINK-PP
SKU: H1302NL
Price: 0.06 USD
Availability: InStock
Rating: 4.8 (172 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: H1302NL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                lan discrete transformer, network transformer


Specifications:	H1302NL	P/N:	LP1302NL
Ethernet:	1x10/100Mbps	Mounting:	SMT
Measure:	12.70x9.40x5.97mm	Samples:	Free
Archivi Disponibili:	PDF/3D/ISG/Stp/Step/Datasheet

Specifications:	H1302NL
P/N:	LP1302NL
Ethernet:	1x10/100Mbps
Mounting:	SMT
Measure:	12.70x9.40x5.97mm
Samples:	Free
Archivi Disponibili:	PDF/3D/ISG/Stp/Step/Datasheet

H1302NL ,H1302NLT 10/100 Transformer XFRMR MAGNETIC 1PORT 1:1 , LP1302NL

Single Port Lan Transformer LP1302NL Compatible

100base-t transformer

SMD, 16 pins

H1302NL ,H1302NLT Compatible Parts

H1302NL Telecom Transformer 1:1/1:1 0.65Ohm Prim. DCR 0.65Ohm Sec. DCR

Audio Transformers / Signal Transformers 100BaseTX SMD NonPoE 350uH .65Ohms 1-Port

Electrical Specifications(25):

1. Turns Ratio50KHz, 0.5V

Chip side: Line side=1CT: 1CT+_2%

2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:

Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

40MHz: -14.4dB Min

50MHz: -13.1dB Min

60-80MHz: -12dB Min

100MHz: -10dB Min

5. Differential to Common Mode Rejection:

30MHz: -45dB Min

60MHz: -40dB Min

100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

60MHz: -35dB Min

100MHz: -30dB Min

7. Hi-Pot: 1500Vrms Min

Applications:

Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,

100% test

Flexible delivery time

H1302NLT
LP1302NL
LP1011NLE
LP1011NL
LP1011PNL
LP1012NL
LP1012NLE
LP1040PNL

H1302NL ,H1302NLT Ethernet Magnetic Transformers 10/100base-T Single Port

H1302NL lowest Price Sales Made In China Equivalent Cross Compatible replacement

H1302NLT lowest Price Sales Made In China Equivalent Cross Compatible replacement

Tags:
