H2017NL / H2017NLT Lan Transformer PC Mainboard 1500Vrms Networking LP5018NL

China H2017NL / H2017NLT Lan Transformer PC Mainboard 1500Vrms Networking LP5018NL supplier

Large Image :  H2017NL / H2017NLT Lan Transformer PC Mainboard 1500Vrms Networking LP5018NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: H2017NLT / H2017NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union, D/A, L/C, D/P, MoneyGram
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
PN.1: H2017NL PN.2: H2017NLT
Ethernet: 10/100 Fast POE: 350mA
Port: 4 Hipot: 1500V
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

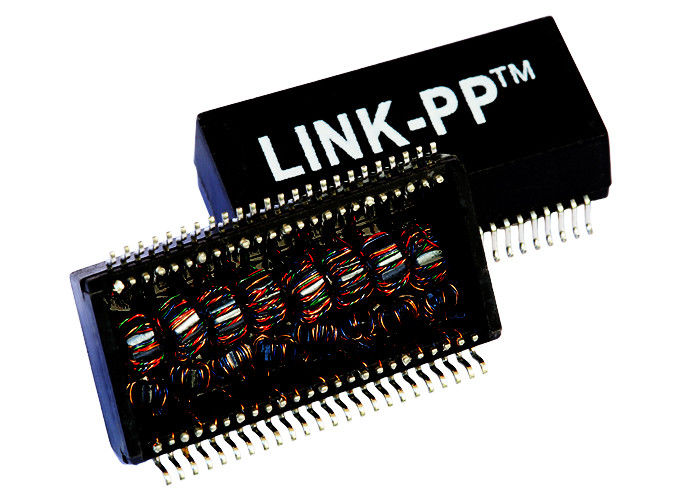

H2017NL / H2017NLT PC Mainboard Lan Transformer 1500Vrms Networking LP5018NL

1.Quad Port Lan Transformer

2.ColiStructure: Toroidal

3.100base-t transformer

4.SMD, 48pins

5.RoHS peak reflow temperature rating 245°C°°
6.IEEE 802.3af/ANSI X3.263 compliant performance
7.Designed for IP phone or switch applications


Application LAN ETHERNET(PoE&NON PoE)
AutomDX YES
Comment RoHS Compliant LP5018NL
Configuration RX T,C
Configuration TX T,C
Construction TRANSFER MOLD
Cores Per Port 4
Number of Ports QUAD
PCB NO PCB
Package SMT
Package Height (Inches) 0.285 or other
Package Height (mm) 7.24 or other
Package Length (Inches) 1.094 or other
Package Length (mm) 27.81 or other
Package Width (Inches) 0.60 or other
Package Width (mm) 15.24 or other
RoHS Compliant YES-RoHS-6
Speed 10/100BASE-TX
Temperature 0 TO 70
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Main P/N LP5018NL, etc



Electrical Specifications(25)

1. Turns Ratio50KHz, 0.5V

    Chip side: Line side=1CT: 1CT+_2%

2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:

    Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss

    1-30MHz: -16dB Min

    40MHz: -14.4dB Min

    50MHz: -13.1dB Min

    60-80MHz: -12dB Min

    100MHz: -10dB Min

5. Differential to Common Mode Rejection:

    30MHz: -45dB Min

    60MHz: -40dB Min

    100MHz: -35dB Min

6. Crosstalk

    30MHz: -40dB Min

    60MHz: -35dB Min

    100MHz: -30dB Min

7. Hi-Pot: 1500Vrms Min


H2017NL / H2017NLT Lan Transformer PC Mainboard 1500Vrms Networking LP5018NLH2017NL / H2017NLT Lan Transformer PC Mainboard 1500Vrms Networking LP5018NL


H2017NL / H2017NLT Lan Transformer PC Mainboard 1500Vrms Networking LP5018NL


Applications:

Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



H2017NL / H2017NLT PC Mainboard Lan Transformer 1500Vrms Networking LP5018NL
H1187NL  H1187NLT  H2008NL H2008NLT
H1197NL H1197NLT H2009NL H2009NLT
H2019NL H2019NLT H2014NL H2014NLT
H2005ANL H2005ANLT H2017NL H2017NLT
H2006ANL H2006ANLT HX2019NL HX2019NLT



H2017NL / H2017NLT PC Mainboard Lan Transformer 1500Vrms Networking LP5018NL
