Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H5004NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
H5004NL |
Speed: |
10/100Base-T |
PN: |
LP5004NL |
Application-Lan: |
Ethernet (NoN PoE) |
Package: |
SMD |
Temperature: |
0℃ TO +70℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
H5004NL |
Speed: |
10/100Base-T |
PN: |
LP5004NL |
Application-Lan: |
Ethernet (NoN PoE) |
Package: |
SMD |
Temperature: |
0℃ TO +70℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

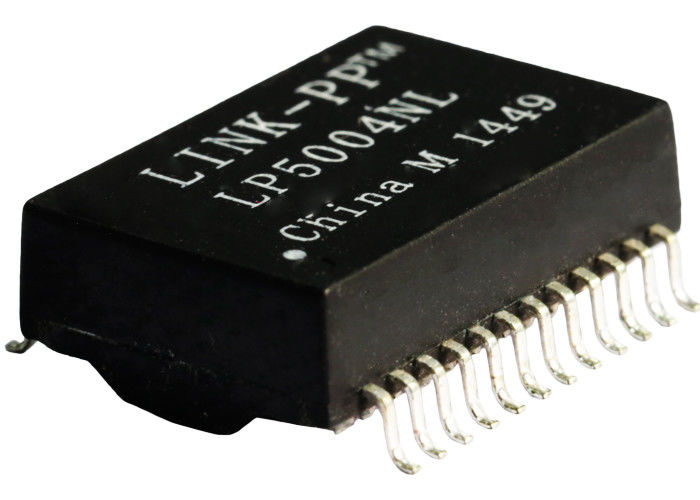

H5004NL 1000BASE-T Magnetics Module 1:1 Turns Ratio Transceivers
1000BASE-T MAGNETICS MODULES Designed to Support 1:1 Turns Ratio Transceivers
LP5004NL Equivalent to Pulse H5004NL
RoHS-5 peak reflow temperature rating 235°C
RoHS-6 peak reflow temperature rating 245°C°
Meets IEEE 802.3 specification
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Detailed Information:
|
LINK-PP LP5004NL 100% CROSS PULSE H5004NL |
|
|
LINK-PP Part Number |
LP5004NL |
|
Pulse Part Number |
H5004NL |
|
Speed |
10/100BASE-T |
|
Number of Ports |
SINGLE |
|
Application - LAN |
ETHERNET (NoN PoE) |
|
Package |
SMD |
|
Temperature |
0℃ TO +70℃ |
|
AutomDX |
YES |
|
Comment |
SAME AS NL VERSION |
|
Configuration RX |
T,C,S |
|
Configuration TX |
T,C,S |
|
Construction |
OPEN FRAME |
|
Cores Per Port |
8 |
|
Package Height (Inches) |
0.260 |
|
Package Height (mm) |
6.60 |
|
Package Length (Inches) |
0.697 |
|
Package Length (mm) |
17.70 |
|
Package Width (Inches) |
0.496 |
|
Package Width (mm) |
12.60 |
|
Turns Ratio RX |
1CT:1CT |
|
Turns Ratio TX |
1CT:1CT |
