Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H5020NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Part Number: |
H5020NL |
Speed: |
1000 BASE-T |
Number Of Ports: |
Dual |
Application: |
Lan Ethernet |
Package: |
SMD |
PIN Number: |
50 |
Temperature: |
0 TO + 70℃ |
Comment: |
SAME AS NL VERSION |
Files Available: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
H5020NL |
Speed: |
1000 BASE-T |
Number Of Ports: |
Dual |
Application: |
Lan Ethernet |
Package: |
SMD |
PIN Number: |
50 |
Temperature: |
0 TO + 70℃ |
Comment: |
SAME AS NL VERSION |
Files Available: |
PDF/3D/ISG/Stp/Step/Datasheet |
Detailed Information:

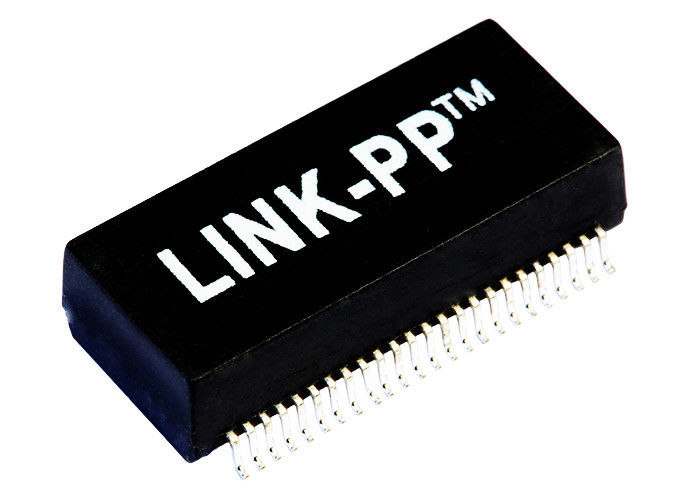

| LINK-PP LP5020NL100% CROSS PULSE H5020NL | |
| LINK-PP Part Number | LP5020NL |
| Pulse Part Number | H5020NL |
| Speed | 1000BASE-T |
| Number of Ports | DUAL |
| Application - LAN | ETHERNET (NoN PoE) |
| Package | SMD |
| Temperature | 0℃ TO +70℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 16 |
| Package Height (Inches) | 0.340 |
| Package Height (mm) | 8.66 |
| Package Length (Inches) | 1.10 |
| Package Length (mm) | 27.94 |
| Package Width (Inches) | 0.430 |
| Package Width (mm) | 10.92 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
