Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

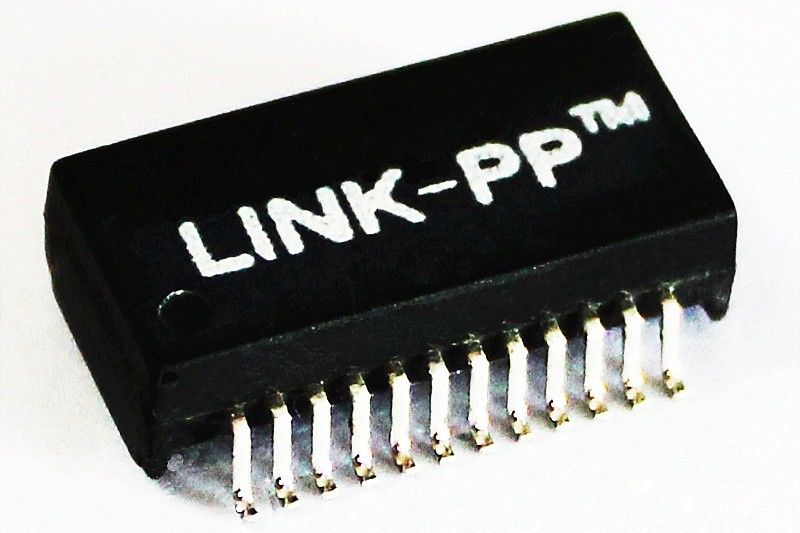

Model Number: H6101NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.09-$2.0
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5KK/Month
Number Of Ports: |
Dual |
Package: |
SMT |
PoE Rating: |
4pair PoE 60w |
Speed: |
1000base-T |
Construction: |
Open Frame |
ROHS Compliant: |
YES-RoHS-6 |
Number Of Ports: |
Dual |
Package: |
SMT |
PoE Rating: |
4pair PoE 60w |
Speed: |
1000base-T |
Construction: |
Open Frame |
ROHS Compliant: |
YES-RoHS-6 |
| Series | LAN 10/100/1000 Base-T |
|
Application |
LAN ETHERNET(PoE+) |
|
AutomDX |
YES |
|
Configuration RX |
T,C |
|
Configuration TX |
T,C |
|
Construction |
Open Frame |
|
Number of Ports |
Dual |
|
Package |
SMT |
|
Package Height |
7.24 mm |
|
Package Length |
27.81 mm |
|
Package Width |
15.24mm |
|
RoHS Compliant |
YES-RoHS-6 |
|
Speed |
10/100/1000BASE-TX |
|
Temperature |
-40 To +85℃ |
| Inductance | 120µH, 350µH |
| Isolation Voltage (V) | 1500VAC |
| Frequency Range | 1 MHz to 125 MHz |
H6101NL Dimensions:
Gigabit Ethernet Magnetics are essential components in various networking and communication devices. They are widely used in HUBs, PC cards, switches, routers, and PC motherboards. Additionally, these transformers are integral to high-speed data transmission in SDH and PDH systems, IP phones, and xDSL modems. Their role is critical in ensuring reliable and efficient data communication across these devices, making them a cornerstone in modern networking infrastructure.
1. Turns Ratio
Pri: Sec=1CT: 1CT
2. OCL: 350uH Min @100KHz,100mV,18mADC Bias
3. Insertion Loss
0.1MHz: -1.1dB Max
100MHz: -1.0dB Max
125MHz: -2.0dB Max
4. Return Loss
30MHz: -18dB Min
60MHz: -12dB Min
80MHz: -12dB Min
100MHz: -10dB Min
5. Crosstalk
30MHz: -43dB Min
60MHz: -37dB Min
100MHz: -33dB Min
7. Hi-Pot: 1500Vrms Min
8. Operating Temperature:-40℃ - +85 ℃
