Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

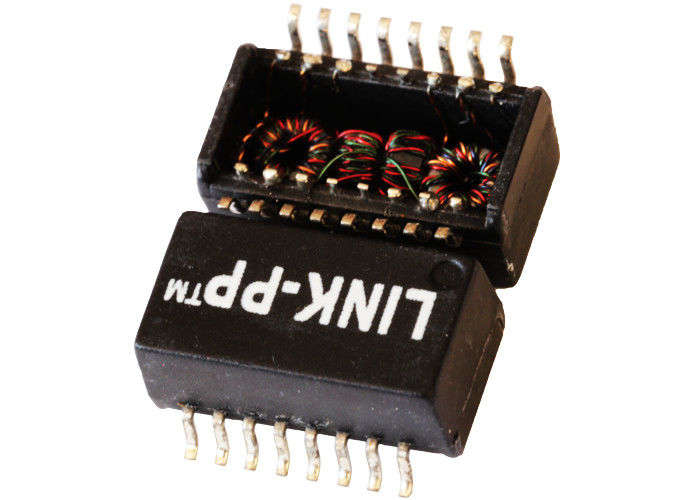

Model Number: 23F-02NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specificatio: |
23F-02NL |
LINK-PP P/N: |
LP21643NL |
Speed: |
10 BASE-T |
Number Of Ports: |
SINGLE |
Application: |
Lan Ethernet(NoN PoE) |
Package: |
SMD |
Temperature: |
0℃ TO +70℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specificatio: |
23F-02NL |
LINK-PP P/N: |
LP21643NL |
Speed: |
10 BASE-T |
Number Of Ports: |
SINGLE |
Application: |
Lan Ethernet(NoN PoE) |
Package: |
SMD |
Temperature: |
0℃ TO +70℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Electrical Specifications @25℃
1.Turn Ratio(±2%): 1CT∶1CT
2.Insertion Loss:
1-10MHz: -1.0dB MAX
3.Attenuation:
TX: 30MHz:-30dB MIN
40MHz:-35dB MIN
100MHz:-35dB MIN
RX: 30MHz:-20dB MIN
40MHz:-31dB MIN
4.Return Loss:
5-10MHz:-15dB MIN
5.Cut-Off Frequency:
15MHz:-30dB MIN
6.Hipot: 1500Vrms/0.5mA/2Sec
7.Operating Temperature: 0～+70℃.
NOTES:
1.Fully Integrated for Adapter,Hub,
and Motherboard Applications
2.Available in enhanced or standard
design versions
3.Low profile surface mount package
4.E2000 series part numbers designed
for AMD,DEC,LSI,Motorola,and National
transceivers
5.RoHS"NL" peak solder rating 245℃.
| S553-5999-54 | S560-6600-AB | S560-6600-KP | s553-6500-C9 |
| S553-5999-86 | S560-6600-AE | S560-6600-KR | S553-6500-D1 |
| S553-5999-86-F | S560-6600-BR | S560-6600-KT | S553-6500-D2 |
| S553-5999-87 | S560-6600-CE | S560-6600-KU | S553-6500-D3 |
| S553-5999-F2 | S560-6600-DJ | S560-6600-KV | S553-6500-D4 |
| S553-5999-F3 | S560-6600-DP | S560-6600-KW | S560-6600-LT |
| S553-5999-F5 | S560-6600-DT | S560-6600-KZ | S560-6600-LW |
| S553-6500-35 | S560-6600-DZ | S560-6600-LB | S560-6600-MD |
| S553-6500-36 | S560-6600-EB | S560-6600-LK | S560-6600-ME |
| S553-6500-39 | S560-6600-EP | S560-6600-LL | S560-6600-MF |
| S553-6500-40 | S560-6600-ER | S560-6600-LP | S560-6600-MJ |
