Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: TS6121A
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$1.2
Packaging Details: T&R
Delivery Time: 1-3days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Part Number: |
STS6121A / TS6121A |
Series: |
Ethernet Transformer |
Magnetics: |
10/100 Base-T |
Turn Ratio: |
1CT : 1CT |
Size / Dimension: |
12.70mm X 9.40mm X 6.22mm |
Datasheet: |
Contact Us |
Part Number: |
STS6121A / TS6121A |
Series: |
Ethernet Transformer |
Magnetics: |
10/100 Base-T |
Turn Ratio: |
1CT : 1CT |
Size / Dimension: |
12.70mm X 9.40mm X 6.22mm |
Datasheet: |
Contact Us |

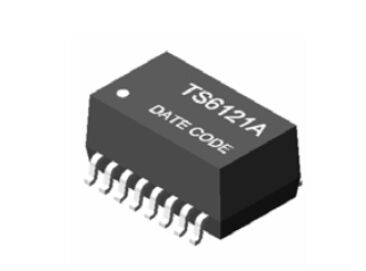

Description: 10/100 BASE Pulse Transformer, SMD small-size package (16-pin SMD)
| Parameter | Conditions / Frequency | Value |
|---|---|---|
| OCL (µH Min) | 100 kHz, 0.2 V, with 8 mA DC Bias | 350 |
| Turns Ratio | TX = 1CT : 1CT | — |
| Insertion Loss (dB Max) | 0.5–100 MHz | –1.1 |
| Return Loss (dB Min) | 0.5–30 MHz | –18 |
| Return Loss (dB Min) | 30.1–60 MHz | –18 + 20 * log(f/30) |
| Return Loss (dB Min) | 60.1–80 MHz | –12 |
| Cross Talk (dB Min) | 0.5–40 MHz | –35 |
| Cross Talk (dB Min) | 40.1–100 MHz | –33 + 20 * log(f/50) |
| CMRR (dB) | 0.5–100 MHz | –30 |
| HI‑POT (Vrms) | — | 1500 |
