Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LP2019ANL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Item: |
TG110-RPE5N5RL |
Application: |
10/100BASE-TX PoE Interface |
Temperature: |
0 ℃ To + 70 ℃ |
Pins: |
16 |
Made In China: |
LP2019ANL |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Shielding: |
Shielded |
Cross Rf: |
TG110-RPE5N5RL = > LP2019ANL |
Item: |
TG110-RPE5N5RL |
Application: |
10/100BASE-TX PoE Interface |
Temperature: |
0 ℃ To + 70 ℃ |
Pins: |
16 |
Made In China: |
LP2019ANL |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Shielding: |
Shielded |
Cross Rf: |
TG110-RPE5N5RL = > LP2019ANL |

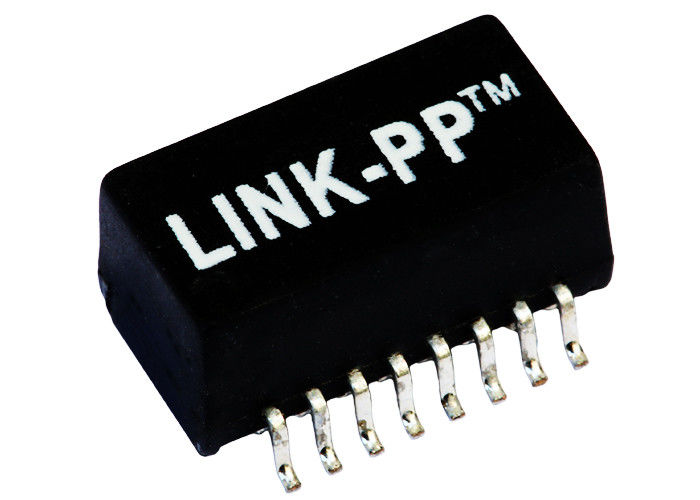

SMD Single Port 10/100BASE-TX PoE/PoE+ Transformer
RP-ULTRA ™
IEEE802.3af/at Compliant
UL/EN60950 Recognized
100% Compliance Testing
1500Vrms Hi-Pot
Patented Open Frame Construction
Electrical Specifications @ 25°C
Isolation Voltage: 1,500Vrms
Insertion Loss (0.1-100MHz): 1.1dB max
CMR (0.1-100MHz): -38dB typ
Crosstalk (0.1-100MHz): -38dB
OCL @100KHz, 8mA: 350μH (over full temp. range)
Return Loss
0.5-30MHz: -18dB min
40MHz: -15.5dB min
50MHz: -13.6dB min
| TG110-RP55N5RL Lan Transformer IEEE802.3af 350mA Halo TG110-RPE5N5RL Cross | |||
|---|---|---|---|
| TG57-S020NXRL | TG110-RPE5N5RL | FD02-104R1RL | TG110-RP55N5RL |
| TG58-S020NXRL | TG04-TDK2NSRL | FD12-104R1RL | FS22-114Y4RL |
| TG110-RPE5N5RL | TG04-TDK1N1RL | FD22-104R1RL | TD01-0506KRL |
| TG62-S020NXRL | TG110-RP55N5RL | FD02-104G1RL | TD01-0756KRL |
| TG66-S020NXRL | TG05-2004NCRL | FD12-104G1RL | TD01-1006KRL |
| TG87-S020NXRL | TG04-4004NARL | FD22-104G1RL | TD01-1506KRL |
| TG88-S020NXRL | TG04-4004NCRL | FD02-114GRL | LD01-0506KLF |
| TG89-S020NXRL | LG01-0346N1LF | FD12-114GRL | LG01-1006NLF |
| TD01-0756K | TG110-RP55N5RL | TG110-RP55N5RL | LD01-0756KLF |
| TD01-1006K | LD01-0366F4LF | TG110-S050P2RL | LD01-1006KLF |
| TG01-0756N | LG01-0356N1LF | TG110-S053P2RL | LG01-0506NLF |
| TG01-1006N | TG110-RPE5N5RL | TG110-S055P2RL | LG01-0756NLF |
| TG110-RP55N5RL | LG01-1006N1LF | TG110-S050J2RL | TG110-RPE5N5RL |
| TG01-1006P | TG04-1006P1 | TG110-S055J2RL | LD01-0166F4LF |
| TG110-RPE5N5RL | TG04-2006P1 | TG110-RPE5N5RL | TG42-1406P1RL |
660-80MHz -12dB min
LINK-PP is pleased to offer the RP-Ultra™, the industry’s first “PoE” version of the small footprint SOIC-16. IEEE802.3af compliant with 350 mA current capability in both commercial and industrial temperature ranges. The RP-Ultra™ is ideal for VoIP phones, wireless base stations and most remote power applications
