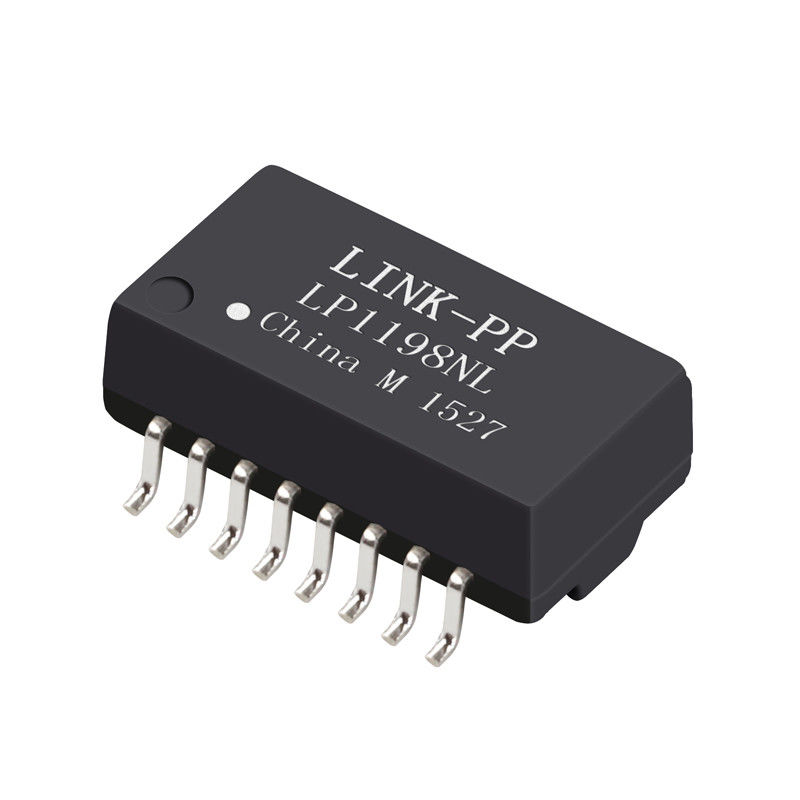

Name: 16 Pin LAN Transformer SMD 10/100Base-T TG110-E050N5RL Magnetics
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: TG110-E050N5RL
Price: 1.06 USD
Availability: InStock

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: TG110-E050N5RL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    TG110-E050N5RL, 16 Pin LAN Transformer, Magnetics Transformer


Part Number:	TG110-E050N5RL	Manufacturer P/N:	LP1198NL
Hipot:	1500V	Number Of Ports:	Single
Speed:	10/100 BASE-T	PIN Number:	16
Temperature:	-40℃ TO +85℃	Files (Contact US):	PDF/3D/ISG/Stp/Step/Datasheet

Part Number:	TG110-E050N5RL
Manufacturer P/N:	LP1198NL
Hipot:	1500V
Number Of Ports:	Single
Speed:	10/100 BASE-T
PIN Number:	16
Temperature:	-40℃ TO +85℃
Files (Contact US):	PDF/3D/ISG/Stp/Step/Datasheet

16 Pin LAN Transformer SMD 10/100Base-T TG110-E050N5RL Magnetics

10 / 100 BASE-TX Single Port LAN Transformer With 16 Pins Description:

Key Features:

Transformer Style TG110-E050N5RL 10/100Base-TX Magnetic Module
Surface mount Mounting, simplifying PCB integration.
IEEE 802.3u compliant.
UL/EN62368 Certification for safety.
High-temperature soldering Max 260°C.
Patented open frame construction design.
-40 to +85°C Operating Temperature Range
Moisture Sensitivity Level MSL 1
100% electrical testing guarantees transformer reliability.
1CT:1CT Turns Ratio for signal integrity.
Capacitance Between Windings (Cw/w): 40 pF max, minimizing signal loss.
Leakage Inductance (LL): 0.4 µH max, ensuring minimal signal distortion.
Primary DCR: 1.0 Ω max, offering low resistance for efficient operation.
OCL Inductance: 0.35 mH max, supporting effective signal transfer.
Common-Mode Rejection Ratio (CMRR): -40 dB min (0.1 to 100 MHz), ensuring noise suppression.
Crosstalk: -40 dB min (0.1 MHz to 100 MHz), minimizing interference between signals.
Hi-Pot Rating: 1500Vrms, providing high insulation resistance.

Application	LAN ETHERNET(PoE&NON PoE)
AutomDX	YES
Configuration RX	T, C
Configuration TX	T, C
Cores Per Port	4
Number of Ports	Single
Speed	10/100 BASE-TX
PCB	NO PCB
Package	SMD
Package Height (Inches)	0.250
Package Height (mm)	6.35
Package Length (Inches)	0.500
Package Length (mm)	12.70
Package Width (Inches)	0.250
Package Width (mm)	9.35
RoHS Compliant	YES-RoHS-6
Temperature	-40℃ To +85℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT
Main P/N	LP1102NL, etc

Applications of 10/100Base-TX Magnetic Module Transformer:

Networking and communication equipment:

HUBs
PC cards
Switches
Routers
PC Mainboards
SDH (Synchronous Digital Hierarchy) systems
PDH (Plesiochronous Digital Hierarchy) systems
IP Phones
xDSL modems

RJ45 Modular Jack

Magnetic RJ45 Jack

Low Profile RJ45 Jack

PoE RJ45 Connector

Vertical RJ45 Jack

SMT RJ45 Connector

RJ45 Multi Port Jack
