Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HX2260NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
HX2260NL |
Specifications1: |
SMST-1666 |
Speed: |
10/100 BASE-T |
Number Of Ports: |
SINGLE |
Application: |
Lan Ethernet(NON PoE) |
Temperature: |
- 40℃ TO + 85℃ |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
HX2260NL |
Specifications1: |
SMST-1666 |
Speed: |
10/100 BASE-T |
Number Of Ports: |
SINGLE |
Application: |
Lan Ethernet(NON PoE) |
Temperature: |
- 40℃ TO + 85℃ |
Hi-pot: |
1500Vrms |
OCL: |
350uh Min |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |

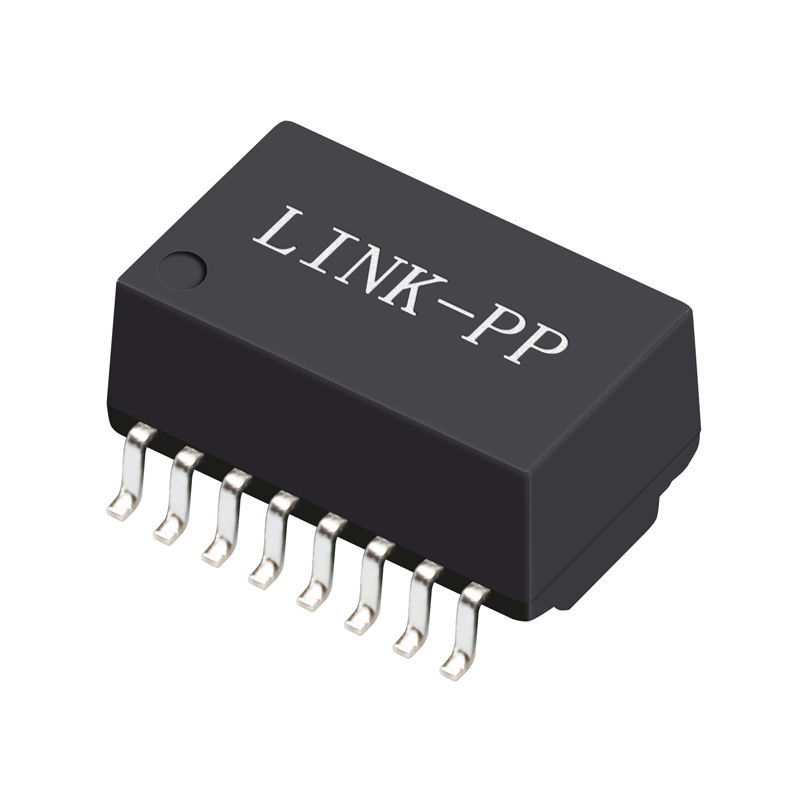

One Port Lan Transformer, 10/100 BASE-TX Magnetics Modules
1. R45 Single Port Lan Transformer
2. ColiStructure: Toroidal
3.100base-t transformer
4. SMD, 16 pins
10 / 100 BASE-TX Single Port Lan Transformer With 16 Pins
Description:
Single Port 100 Base-t ETHERNET MAGNETIC TRANSFORMERS
| Application | LAN ETHERNET(PoE&NON PoE) |
| AutomDX | YES |
| Comment | RoHS Compliant LPXXXXNL |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Construction | TRANSFER MOLD |
| Cores Per Port | 4 |
| Number of Ports | Single |
| PCB | NO PCB |
| Package | SMT |
| Package Height (Inches) | 0.225 or other |
| Package Height (mm) | 5.715 or other |
| Package Length (Inches) | 1.12 or other |
| Package Length (mm) | 28.448 or other |
| Package Width (Inches) | 0.63 or other |
| Package Width (mm) | 16.002 or other |
| RoHS Compliant | YES-RoHS-6 |
| Speed | 10/100/1000BASE-TX |
| Temperature | 0 TO 70/-40 To +85 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
| Main P/N | LP1198NL, etc |
Electrical Specifications(25):
1. Turns Ratio 50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms Min
| HX2260NL One Port Lan Transformer, 10/100 BASE-TX Magnetics Modules SMST-1666 | |||
|---|---|---|---|
| 16PT8515-4 LF | G4P109N-C LF | LG1P109RN LF | NA0068 LF |
| 16PT8520RX LF | G4P109NM-A LF | LG1P109NM LF | NA0069 LF |
| 16PT8520RX LF | HX2260NL | 24HSS1041-2 HF | NA0069R LF |
| 12PS1142X LF | G4P109NY-2 LF | 24HSS1041A-2 HF | NH15 LF |
| 12PS6121A LF | G4P109R LF | 24HSS1041AM-21 HF | HX2260NL |
| 12PS6121C LF | G4P109RNY LF | 24HSS1041AX-2 HF | NS0013A LF |
| 12PS6121CX LF | HX2260NL | HX2260NL | NS0013B LF |
| 12PS6121UX LF | G4P209N-1 LF | 24HSS1041E-2 HF | NS0013BX LF |
| 12PH21A LF | G4P209NS-1 LF | 24HSS1041E-2 HF | NS0013C LF |
| 12ST1112 LF | G4P209NS-2 LF | 24HSS1041Y-2 HF | NS0013X LF |
| 16ST1086 HF | G4P209NSS LF | HX2260NL | NS0068 LF |
| 16ST8510 HF | G4P209NSS-L LF | 24HSS1041M-2 HF | NS0068A LF |
| 16ST8515 HF | G4P209NY LF | 24HSS1041RM-2 HF | NS0068B LF |
| 16ST8515-4 HF | G4P209NY-1 LF | 24HSS1041RZ-2 HF | NS0068C LF |
