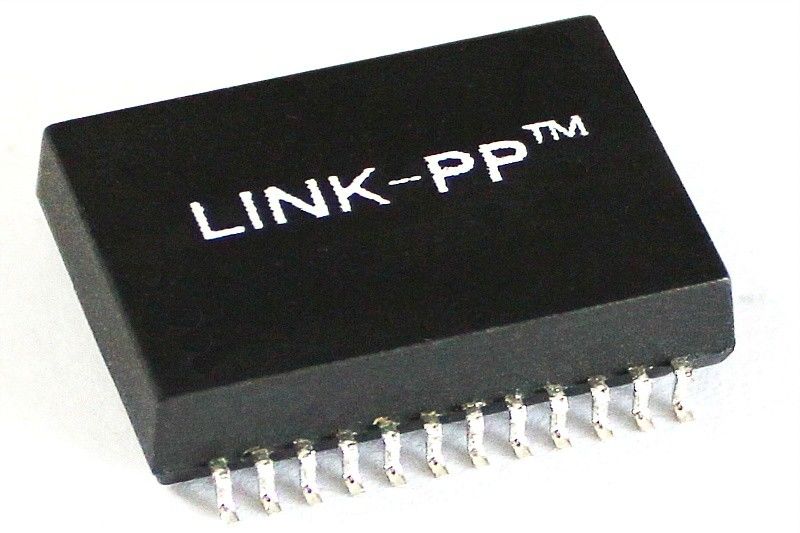

S558-5500-68 SMT LAN Transformer Support 1000BaseT 60W PoE

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: S558-5500-68

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

S558-5500-68 LAN Transformer

,

Network Transformer

,

S558-5500-68

PN:
S558-5500-68
Number Of Ports:
Single Port
Mounting Style:
SMT
Application:
1000BaseT, 60W PoE
Profile Type:
Standard
Operating Temperature Range:
-40°C To 85°C
PN:
S558-5500-68
Number Of Ports:
Single Port
Mounting Style:
SMT
Application:
1000BaseT, 60W PoE
Profile Type:
Standard
Operating Temperature Range:
-40°C To 85°C
S558-5500-68 SMT LAN Transformer Support 1000BaseT 60W PoE

S558-5500-68 SMT LAN Transformer Support 1000BaseT 60W PoE



This S558-5500-68 LAN magnetic Transformer is designed for 1000BaseT networks. It features a single-port design and supports 60W power transfer. The surface mount technology (SMT) allows for convenient installation. Its standard profile and RoHS compliance make it suitable for various applications within a wide operating temperature range from -40°C to 85°C.



Quick Details

  • Network Standard: 1000BaseT
  • PoE Function: Supports 60W power transfer
  • Number of Ports: Single-port design
  • Mounting Style: Surface Mount Technology (SMT)
  • Application: Suitable for 1000BaseT networks, supporting 60W power transfer
  • Profile Type: Standard Profile
  • Operating Temperature Range: -40°C to 85°C
  • RoHS Compliance: Complies with RoHS environmental standards



Single Port Gigabit ETHERNET MAGNETIC TRANSFORMERS



Application LAN ETHERNET(PoE&NON PoE)
AutomDX YES
Comment RoHS Compliant LPXXXXNL
Configuration RX T,C
Configuration TX T,C
Construction TRANSFER MOLD
Cores Per Port 4
Number of Ports QUAD
PCB NO PCB
Package SMT
Package Height (Inches) 0.225 or other
Package Height (mm) 5.715 or other
Package Length (Inches) 1.12 or other
Package Length (mm) 28.448 or other
Package Width (Inches) 0.63 or other
Package Width (mm) 16.002 or other
RoHS Compliant YES-RoHS-6
Speed 10/100/1000BASE-TX
Temperature 0 TO 70/-40 To +85
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT


Electrical Specifications@25°C:

1. Turns Ratio50KHz, 0.5V
      Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
            40MHz: -14.4dB Min

            50MHz: -13.1dB Min
            60-80MHz: -12dB Min
            100MHz: -10dB Min
5. Differential to Common Mode Rejection:
            30MHz: -45dB Min
            60MHz: -40dB Min
            100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
            60MHz: -35dB Min
            100MHz: -30dB Min
7. Hi-Pot: 1500Vrms Min



Mechanical Options



  1. Plug tab down of plug tab up
  2. With or without LEDs (and bi-color)
  3. RJ45 and USB port combinations
  4. Low profile versions under 0.5in height
  5. Micro height versions under 0.45in height
  6. Mid-plane mount versions under 0.40in height
  7. Vertical mount packaging
