100M Base Shield Vertical RJ45 Jack , 51F-1202ND2NL Integrated Magnetic

Name: 100M Base Shield Vertical RJ45 Jack , 51F-1202ND2NL Integrated Magnetic
Brand: LINK-PP
SKU: LPJD0011DNL
Price: 0.09 USD
Availability: InStock
Rating: 4.6 (161 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJD0011DNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: Tray, Tape & Reel

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000K/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, multi port connector


Spec:	51F-1202ND2NL	Alternate:	LPJD0011DNL
Family:	Vertical Entry Magjack	Interface:	10/100Base-T
Samples:	Free	Files:	Available 3D-STEP

Spec:	51F-1202ND2NL
Alternate:	LPJD0011DNL
Family:	Vertical Entry Magjack
Interface:	10/100Base-T
Samples:	Free
Files:	Available 3D-STEP

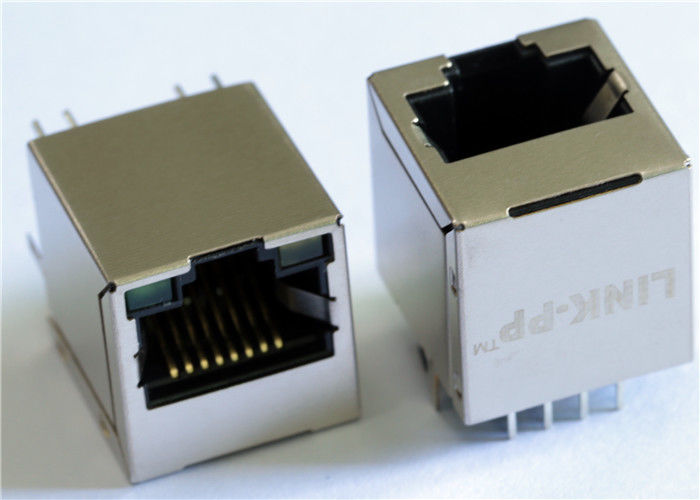

100M Base Shield Vertical RJ45 Jack , 51F-1202ND2NL Integrated Magnetic

100M Base Shield Vertical RJ45 Jack , Pin to Pin 51F-1202ND2NL Integrated Magnetic

1.Single Port RJ45 Connector LPJD0011DNL

10/100Mbps Ethernet Magnetic Jack

2.Vertical RJ45 Jack 51F-1202ND2NL Compatible

3.Female RJ45 Jack, Metal RJ45 Jack

4.Application: HUB, PC card, Switch, Router

100M Base Vertical RJ45 Jack , Single Port PCB Mount JACK

Description:

10/100M vertical RJ45 with step with leds

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Top Entry(Vertical)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,

100% test

Flexible delivery time
