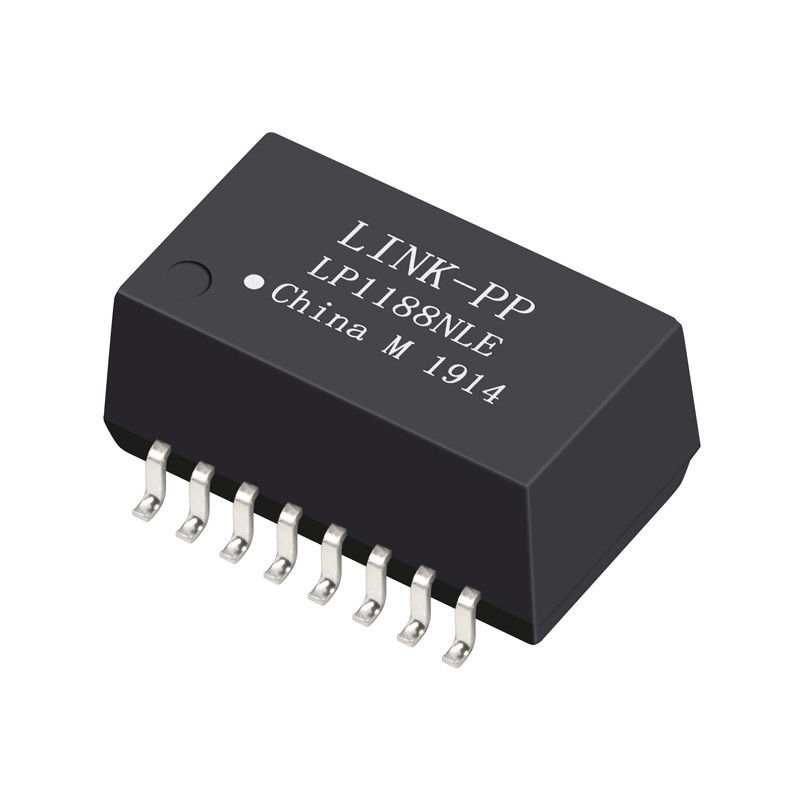

HX1188NL Lan Transformer Surface Mounted 10/100 Base - T Ethernet 16 Pins
HX1188NL Lan Transformer Surface Mounted 10/100 Base - T Ethernet 16 Pins
HX1188NL Lan Transformer Surface Mounted 10/100 Base - T Ethernet 16 Pins
HX1188NL Lan Transformer Surface Mounted 10/100 Base - T Ethernet 16 Pins

HX1188NL Lan Transformer Surface Mounted 10/100 Base - T Ethernet 16 Pins

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HX1188NL / HX1188

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$2.7

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 5KK/Month

Get Best Price

Product Details

Product Description
Highlight:

HX1188NL LAN Transformer

,

100BASE-TX Ethernet Transformer

,

Pulse HX1188NL

P/N:
HX1188NL
Mounting:
SMT
Turn Radio:
1:1
Data Rate:
100BASE-TX
Hipot:
1500VDC
PoE:
NON-POE
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
P/N:
HX1188NL
Mounting:
SMT
Turn Radio:
1:1
Data Rate:
100BASE-TX
Hipot:
1500VDC
PoE:
NON-POE
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
HX1188NL Lan Transformer Surface Mounted 10/100 Base - T Ethernet 16 Pins

HX1188NL 100Base-TX Transformers Features:

  1. Fully compliant with RoHS-6 standards.
  2. Designed with an open frame improving thermal management.
  3. Surface Mount Technology Allows for easy integration.
  4. 1.5 kV High Isolation Voltage ensuring safety and reliability in data transmission.
  5. -40°C to +85°C Wide Operating Temperature Range.
  6. Features 350 µH high inductance support stable data transmission.
  7. 12.7x9.53x5.97 mm compact dimensions.
  8. Can be stored in temperatures ranging from -50°C to +125°C.

Applications of HX1188NL LAN Transformer:



  • LAN Ethernet Transformer/Choke
  • 100 Base-TX Networks
  • Data Interface and Isolation
  • Industrial and Commercial Environments
  • Networking Equipment
  • Telecommunications
  • Embedded Systems
  • Automation Systems
  • Security Systems



HX1188NL Datasheet:



HX1188NL Lan Transformer Surface Mounted 10/100 Base - T Ethernet 16 Pins 0

HX1188NL Lan Transformer Surface Mounted 10/100 Base - T Ethernet 16 Pins 1



Pulse HX1188NL Electrical Specifications(@25℃):



1. Turns Ratio 50KHz, 0.5V Chip side: Line side=1CT: 1CT±2%

2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias: Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

40MHz: -14.4dB Min

50MHz: -13.1dB Min

60-80MHz: -12dB Min

100MHz: -10dB Min

5. Differential to Common Mode Rejection:

30MHz: -45dB Min

60MHz: -40dB Min

100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

60MHz: -35dB Min

100MHz: -30dB Min

7. Hi-Pot: 1500Vrms Min



Tags:

100Base-T Transformer,

Gigabit Ethernet Transformer,

Power Over Ethernet Transformer
