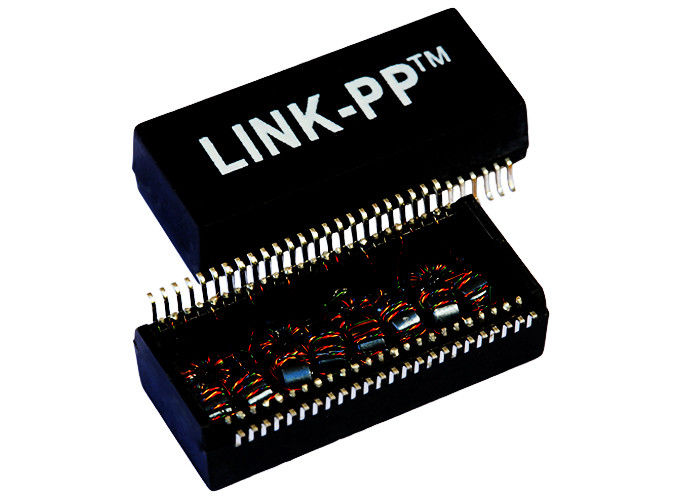

Gigabit Ethernet Transformer TG1G-001NY ADSL Modems Surface Mounting 24Pins

Name: Gigabit Ethernet Transformer TG1G-001NY ADSL Modems Surface Mounting 24Pins
Brand: LINK-PP
SKU: TG1G-001NY
Price: 0.06 USD
Availability: InStock
Rating: 4.7 (154 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: TG1G-001NY

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                gigabit magnetics transformer, ethernet transformer


Item#:	TG1G-001NY	Made In China:	LP5015ANL
Pin:	24 Position	Samples:	Free
Archivi Disponibili:	PDF/3D/ISG/Stp/Step/Datasheet

Item#:	TG1G-001NY
Made In China:	LP5015ANL
Pin:	24 Position
Samples:	Free
Archivi Disponibili:	PDF/3D/ISG/Stp/Step/Datasheet

Gigabit Ethernet Transformer TG1G-001NY ADSL Modems Surface Mounting 24Pins

Electrical Specification @25℃
1.OCL(100KHz,0.1Vrms,8mA):350uH
2.Turns Ratio: 1CT:1CT
3.Insertion Loss:
1-100MHz:-1.0dB max
4.Return Loss(dB min):
1-40MHz:-18 60MHz:-14
80MHz:-12 100MHz:-10
5.Crosstalk(dB min):
30MHz:-43 60MHz:-37
100MHz:-33
6.CMR: 0.1-100MHz:-40dB typ
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: -40℃～+85℃.

NOTES:
1.Designed to support application,
such as SOHO(ADSL modems),LAN-on-
Motherboard(LOM),hub and Switches.
2.With various Turns Ratios.
3.RoHS"NL" peak solder rating 245℃.

Gigabit Ethernet Transformer TG1G-001NY ADSL Modems Surface Mounting 24Pins 0
