Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LPXXXXXX
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Original: |
TC5000 |
Equivalent: |
LPxxxxxx |
Speed: |
5G Base-T |
Transformer Type: |
Isolation And Data Interface |
Temperature: |
-40°C ~ 85°C |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Original: |
TC5000 |
Equivalent: |
LPxxxxxx |
Speed: |
5G Base-T |
Transformer Type: |
Isolation And Data Interface |
Temperature: |
-40°C ~ 85°C |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
| LINK-PP Part Number | LPxxxxxx |
| Other Part Number | TC5000 |
| Speed | 5G BASE-T |
| Number of Ports | SINGLE |
| POE RATING | NON-POE |
| Package | SMT |
| Temperature | -40°C ~ 85°C |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| APPLICATION-LAN | ETHERNET TRANSFORMER |
| Package Height (Inches/mm) | 3 |
| Package Length (Inches/mm) | 4.85 |
| Package Width (Inches/mm) | 3.55 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |

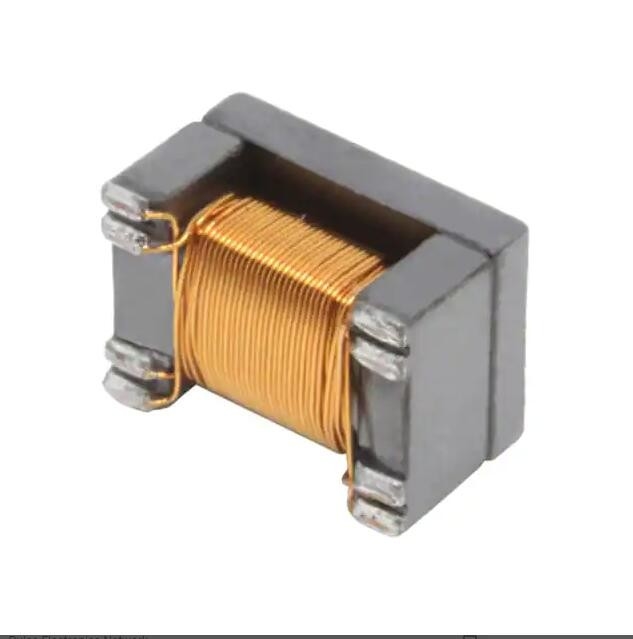

TC5000 SINGLE Port 5G BASE-T SMD Lan Transformer Modules 8Pin Features:
.Meets IEEE802.3 specification with 1000BASE-T, 2.5GBASE-T, 5GBASE-T, and 10GBASE-T (Non-PoE and PoE+)
.Compatible with all Major PHYs
.Compliance to the REACH and RoHS directive
.Ideal for Networking and Interconnect devices, Servers, Switches, Router, Access Point, and Digital Video and Cameras
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.06-$3.2 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||
TC5000 5G BASE-T Lan Transformer Modules Electrical Schematic:
TC5000 SINGLE Port 8Pin 5G BASE-T SMD Lan Transformer Modules Side VIEW:
TC5000 similar Part Number :
| TC2500 | TC2500P | TC1000 |
| TC5000 | TC5000P | TC1000P |
