Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LPxxxxxx
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Original: |
L22H007-0 |
Equivalent: |
LPxxxxxx |
Speed: |
1000 Base-T |
Transformer Type: |
Isolation And Data Interface |
Operating Temperature: |
0~+70℃ |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Original: |
L22H007-0 |
Equivalent: |
LPxxxxxx |
Speed: |
1000 Base-T |
Transformer Type: |
Isolation And Data Interface |
Operating Temperature: |
0~+70℃ |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
| Item Part Number | L22H007-0 |
| LINK-PP Part Number | LPxxxxxx |
| Manufacturer | LINK-PP |
| Speed | 1000 BASE-T |
| Number of Ports | Single Ports |
| PIN number | 24 PIN |
| Cores per Port | 8 |
| POE | Non PoE |
| Type | SMD |
| Size | 17.55 x 16 x 6 |
| Pin Pitch |
1.27 |
| Circuits | 2C+T |
| Operating Temperature | 0~+70℃ |
| CMC | Cable |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.06-$3.2 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||

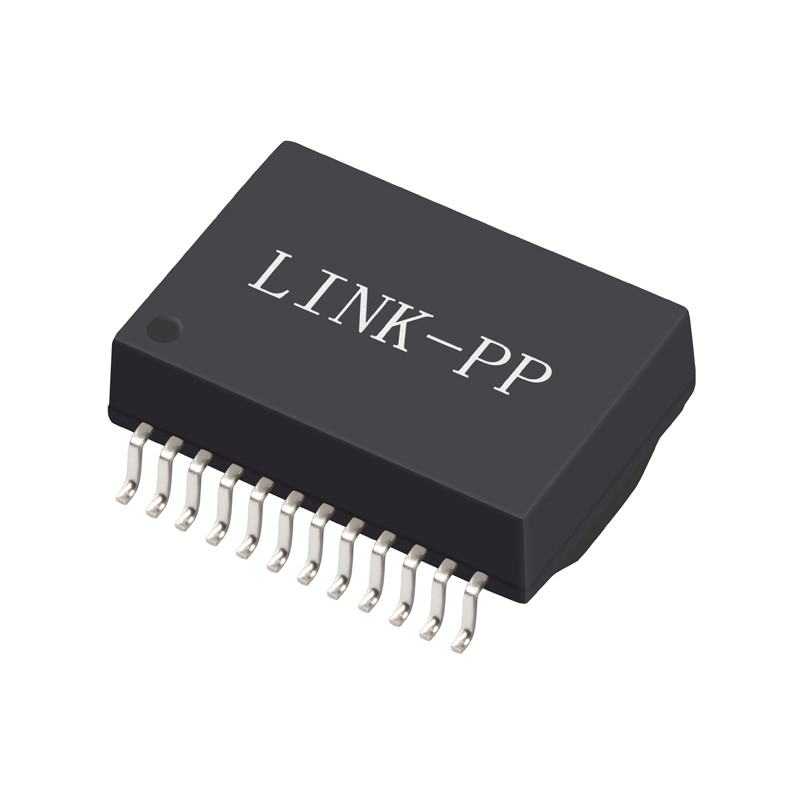

L22H007-0 Single Port 1000 Base –T LAN Filter ELECTRICAL CHARACTERISTICS Schematic:
L22H007-0 LAN Filter SPECIFICATION:
Designed for Ethernet 1000 Base-T,Single port applications.
Supports 4 pairs of category 5 UTP cable.
Cable interface for isolation and low common mode emissions.
Compliant with IEEE 802.3ab standard for 1000 Base-T.
Compliant with RoHS&Halogen Free requirements.
Operating and Storage Temperature
Operating Temperature: 0°C to +70°C
Storage Temperature :
-25°C to +105°C
Packing Information
400 pcs finished goods per reel
3 reels( 1200 pcs finished goods) per inner box
2 Inner boxes(2400 pcs finished goods) per master carton
L22H007-0 Similar Part Number :
| L19T003-4 | L19T004-3 | L22A003-3 |
| L22A007-3 | L22B003-0 | L22B005-0 |
| L22B006-0 | L22H004-S | L22H005-3 |
| L22H006-2 | L22H006-4 | L22H007-0 |
| L22H008-3 | L22H010-3 | L22H017-0 |
