Home > products > Discrete Magnetic Transformers > L26N003-0 1G Base - T Dual Port Lan Filter Magnetic Transformer 50 Pin

L26N003-0 1G Base - T Dual Port Lan Filter Magnetic Transformer 50 Pin

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LPxxxxxx

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

L26N003-0

,

1G Lan Filter

,

L26N003-0 Magnetic Transformer

Original:
L26N003-0
Equivalent:
LPxxxxxx
Speed:
1G Base –T
Transformer Type:
Isolation And Data Interface
Operating T-40~+105℃emperature:
0~+70℃
File:
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Original:
L26N003-0
Equivalent:
LPxxxxxx
Speed:
1G Base –T
Transformer Type:
Isolation And Data Interface
Operating T-40~+105℃emperature:
0~+70℃
File:
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
L26N003-0 1G Base - T Dual Port Lan Filter Magnetic Transformer 50 Pin
L26N003-0 1G Base –T Dual Port Lan Filter Magnetic Transformer 50 Pin





Item Part Number L26N003-0
LINK-PP Part Number LPxxxxxx
Manufacturer LINK-PP
Speed 1G BASE-T
Number of Ports Dual Port
PIN number 50 PIN
Cores per Port 16
POE Non PoE
Type SMD
Size 27.75 x 10.7 x 8.4
Pin Pitch 1.02
Circuits 2C+T
Operating Temperature 0~+70℃
CMC Cable



You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

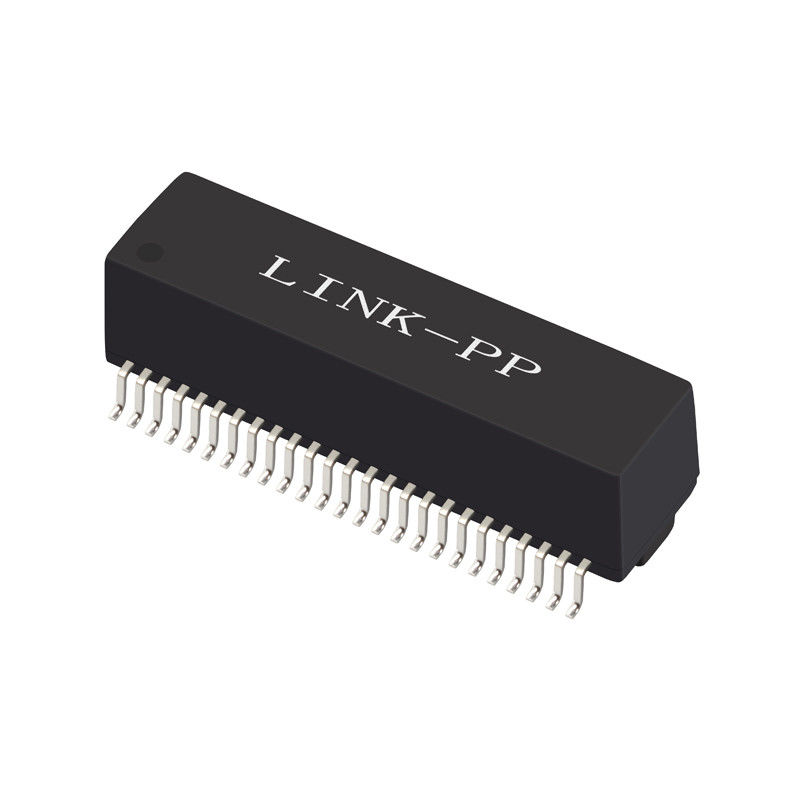

L26N003-0 1G Base - T Dual Port Lan Filter Magnetic Transformer 50 Pin 0







L26N003-0​​ ​​FEATURES​:



Designed for Ethernet 1000 Base-T,full Dual port applications.


Supports 8 pairs of category 5 UTP cable.


Cable interface for isolation and low common mode emissions.


Designed to meet EE 802 3ab standard for 1000 Base-T.


Compliant with RoHS&Halogen Free requirements.


Operating and Storage Temperature
Operating Temperature: 0°C to +70°C .
Storage Temperature: -25°C to +105°C


Packing Information
350 pcs finished goods per reel
2 reels( 700 pcs finished goods) per inner box
2 Inner boxes(1400 pcs finished goods) per master carton











L26N003-0 1G Base –T Dual Port Lan Filter​ ELECTRICAL CHARACTERISTICS Schematic:



L26N003-0 1G Base - T Dual Port Lan Filter Magnetic Transformer 50 Pin 1





L26N003-0 Recommened PCB Layout (Unit mm)

L26N003-0 1G Base - T Dual Port Lan Filter Magnetic Transformer 50 Pin 2







L26N003-0 Similar Part Number :



L24N001-0 L24T001-C L24T003-3
L24T005-3 L25N001-0 L25T001-M
L26H001-B L26H002-S L26N003-0
L26T001-3 L26T007-3 L26T009-3
LA9H001-0 LA9H001-2 LA9H002-4
