Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LPxxxxxx
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Original: |
L26T001-3 |
Equivalent: |
LPxxxxxx |
Speed: |
1000 Base –T |
Transformer Type: |
Isolation And Data Interface |
Operating T-40~+105℃emperature: |
-40~+85℃ |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Original: |
L26T001-3 |
Equivalent: |
LPxxxxxx |
Speed: |
1000 Base –T |
Transformer Type: |
Isolation And Data Interface |
Operating T-40~+105℃emperature: |
-40~+85℃ |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |

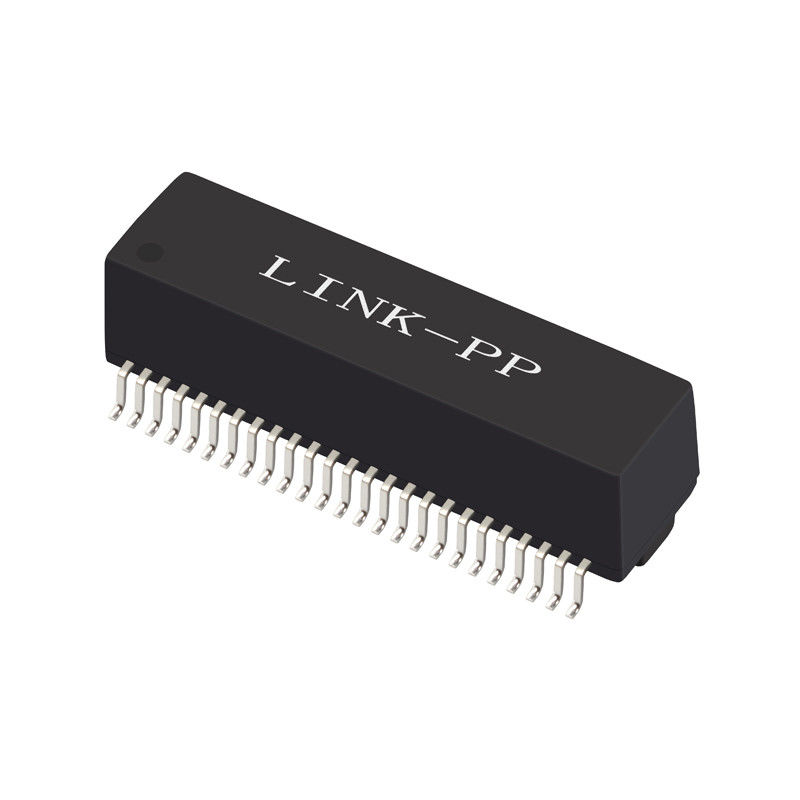

| Item Part Number | L26T001-3 |
| LINK-PP Part Number | LPxxxxxx |
| Manufacturer | LINK-PP |
| Speed | 1000 BASE-T |
| Number of Ports | Dual Port |
| PIN number | 50 PIN |
| Cores per Port | 16 |
| POE | PoE_30/60W |
| Type | SMD |
| Size | 27.75 x 10.7 x 8.4 |
| Pin Pitch | 1.02 |
| Circuits | 2C+T |
| Operating Temperature | -40~+85℃ |
| CMC | Cable |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.06-$3.2 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||
L26T001-3 FEATURES:
Designed for Ethernet 1000 BASE-T,full Dual port applications.
Supports 8 pairs of category 5 UTP cable.
Cable interface for isolation and low common mode emissions.
Design to meet EEE 802.3bt with 720mA balanced current.
Compliant with RoHS&Halogen Free requirements.
Operating and Storage Temperature
Operating Temperature: -40°C to +85°C
Storage Temperature :
-25°C to +105°C
Packing Information
350 pcs finished goods per reel
2 reels( 700 pcs finished goods) per inner box
2 Inner boxes( 1400 pcs finished goods) per master carton
L26T001-3 Lan Transformer ELECTRICAL CHARACTERISTICS Schematic:
UDE L26T001-3 Similar Part Number :
| L24N001-0 | L24T001-C | L24T003-3 |
| L24T005-3 | L25N001-0 | L25T001-M |
| L26H001-B | L26H002-S | L26N003-0 |
| L26T001-3 | L26T007-3 | L26T009-3 |
| LA9H001-0 | LA9H001-2 | LA9H002-4 |
