Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

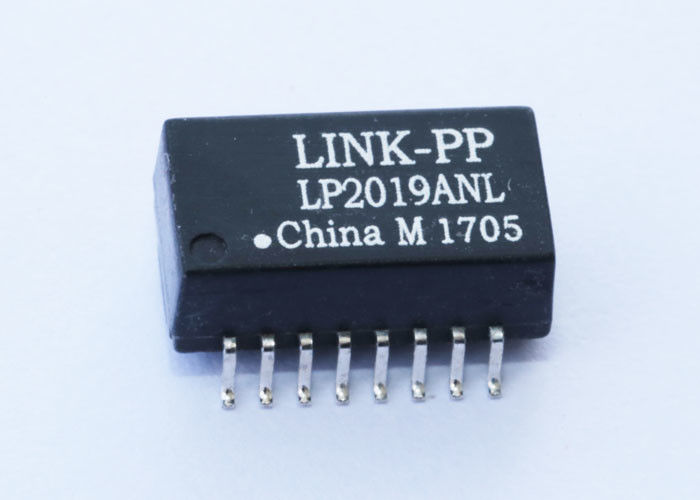

Model Number: LP2019ANL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
H2019FNLT |
Inductance: |
350µH |
Turns Ratio: |
1 : 1 |
Mounting Type: |
Surface Mount |
Dimension: |
12.95mm X 7.11mm X 5.33mm |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Cross Rf: |
H2019FNLT => LP2019ANL |
Specifications: |
H2019FNLT |
Inductance: |
350µH |
Turns Ratio: |
1 : 1 |
Mounting Type: |
Surface Mount |
Dimension: |
12.95mm X 7.11mm X 5.33mm |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Cross Rf: |
H2019FNLT => LP2019ANL |
| Specification | H2019FNLT |
| Cross references PN | LP2019ANL |
| Termination Style: | SMD/SMT |
| Frequency Range: | 1 MHz to 125 MHz |
| Inductance: | 350 uH |
| Isolation Voltage: | 1.5 kV |
| Minimum Operating Temperature: | 0 C |
| Maximum Operating Temperature: | + 70 C |
| Number of Channels: | Single |
| Product: | LAN |
| Type: | Module |
| Application: | 100Base-TX |
| Length: | 0.5 in |
| Width: | 0.358 in |
| Height: | 0.236 in |
| Packaging: | Reel |
| Brand: | Pulse Electronics |
| Maximum DC Resistance: | 0.65 Ohms |
| Product Type: | Single Port Transformer |
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact
area.
4.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
