Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

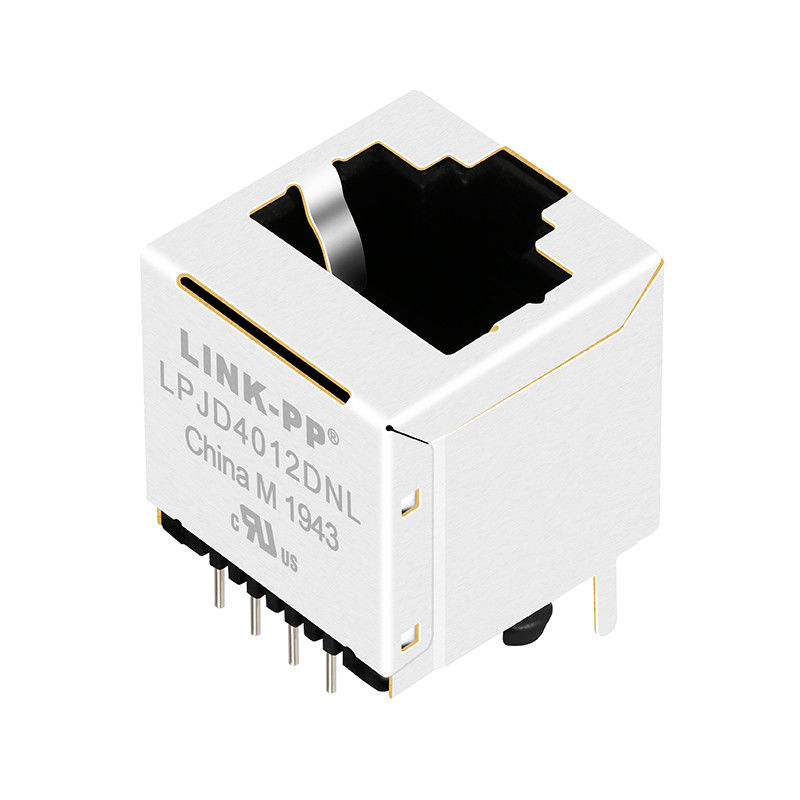

Model Number: LPJD4012DNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: $0.09-$3.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Original: |
JXD2-0Z14NL |
Equivalent: |
LPJD4012DNL |
OperatingTemperature: |
-40 To 85 |
Samples: |
Free Available |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Original: |
JXD2-0Z14NL |
Equivalent: |
LPJD4012DNL |
OperatingTemperature: |
-40 To 85 |
Samples: |
Free Available |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
| Pulse Part Number | JXD2-0Z14NL |
| LINK-PP Part Number | LPJD4012DNL |
| Manufacturer | LINK-PP |
| Product Status | Active |
| Speed | 10/100 Base-T |
| Number of Ports | 1x1 Port |
| Orientation | 180° Angle (Right) |
| Mounting Type | Through Hole |
| Mounting Angle | Vertical |
| Application-Lan | Ethernet(NoN PoE) |
| Shielding | Shielded |
| LED Color | Without |
| Number of Positions / Contacts per Port | 8P8C |
| Operating Temperature | -40°C ~ 85°C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
RJ45 Vertical Magnetics Jack application:
The Vertical RJ45 Mag Jack is used in Ethernet applications for networking equipment like routers, switches,
and hubs. It provides improved signal quality and protection from electromagnetic interference (EMI) generated
by nearby devices or the Ethernet signals themselves.
JXD2-0Z14NL RJ45 Vertical Mag Jack Dimension:
RJ45 Vertical Industrial Top Entry single port description:
Industrial Fast Ethernet and Gigabit (10/100Base-T) single port RJ45 vertical/ top entry integrated magnetics connector,designed to support applications, such as embedded automation and drive control, wall and panel mount HMI and outdoor networks.
RJ45 Vertical Industrial Jack features:
1. RoHS peak wave solder temperature rating 260°C
2. Top entry, small footprint to minimize board space
3. Meets IEEE 802.3 specification
4. 350μH minimum OCL with 8mA bias current
5. High performance for maximum EMI suppression
JXD2-0Z14NL RJ45 Vertical Magnetics Jack Schematic:
JXD2-0Z14NL Similar Part Number:
| LPJD4012DNL | JXD2-0Z10NL | JXD2-0Z11NL |
| JXD2-0Z15NL | JXD2-0Z25NL | JXD2 Series |
Overall, the Vertical RJ45 Mag Jack is a versatile and reliable connector that can be used in a wide range of
networking applications to improve signal quality and protect against EMI.
