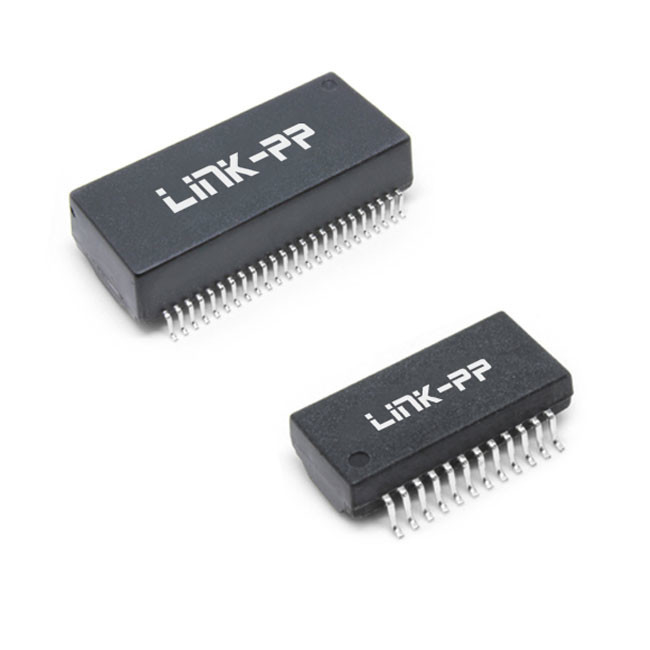

HB4010HLT 2.5G Base-T Ethernet Transformer Module SMT Single Port

Name: HB4010HLT 2.5G Base-T Ethernet Transformer Module SMT Single Port
Brand: LINK-PP
SKU: HB4010HLT
Price: 0.09 USD
Availability: InStock
Rating: 4.7 (152 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: HB4010HLT

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $0.09-$2.00

Packaging Details: Tape & Reel (TR)

Delivery Time: 5-7 Days

Payment Terms: TT, NET30/60/90 Days

Supply Ability: 6000000-Pcs/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                HB4010HLT, 2.5G Transformer, HB4010HLT Ethernet Transformer Module


Product Name:	HB4010HLT 2.5G LAN Transformers	Mounting Type:	Surface Mount
Data Rate:	2.5 GIGABIT	Number Of Ports:	Single
Temperature:	0 To +70°C	PoE:	NON-POE
Turns Ratio:	1CT:1CT	Length:	17.6mm
Width:	15.9mm	Height:	6mm

Product Name:	HB4010HLT 2.5G LAN Transformers
Mounting Type:	Surface Mount
Data Rate:	2.5 GIGABIT
Number Of Ports:	Single
Temperature:	0 To +70°C
PoE:	NON-POE
Turns Ratio:	1CT:1CT
Length:	17.6mm
Width:	15.9mm
Height:	6mm

HB4010HLT 2.5G Base-T Ethernet Transformer Module SMT Single Port

Features of HB4010HLT LAN Transformer:

Product Overview - This SMT transformer module is designed for 2.5GBASE-T Ethernet applications. This single-port LAN Transformer offers a turn ratio of 1CT:1CT and provides a media side inductance of 180µH. Operating within a temperature range of 0°C to +70°C, it ensures reliable performance in various environmental conditions. Fully RoHS compliant and free from lead and halogen, the HB4010HLT is environmentally friendly and safe for use in various applications. Each transformer module is optimized for network connectivity.

Key Features

Standard 24-pin, MSL1 open header design;
Compact footprint of 17.5mm x 16.0mm, conserving valuable board space;
Operates in both commercial and extended temperature ranges, ensuring reliability in diverse environments;
Offers high isolation and surge-compliant options;
Fully RoHS compliant and offer lead and halogen-free designs;
Qualified at major PHY suppliers for 2.5GBASE-T and backward compatibility with the slower 1000Base-T port connection;
Offers high isolation and surge-compliant options, safeguarding network integrity;
8. Designed with advanced materials and construction techniques to deliver consistent performance and durability.

HB4010HLT Electrical Specification @ 25°C:

Items	MOD, SIN, 2.5GD 1:1, HF, SMD, T&R
Part Number	HB4010HLT HB4 Series Pulse Transformers
Media side inductance (@100KHz/0.1Ve)	180uH min
Insertion Loss	-1.0dB MAX @ 1-100 KHz -1.5dB MAX @ 125 MHz
Return Loss	-16dB MIN @ 1-40 MHz -(16-10 log10(f/40) @ 40-125 MHz
Operating Temperature Range	0 to +70°C
Isolation (Pri:Sec)	1500Vrms

2.5G LAN Transformers Schematics:

HB4010HLT 2.5G Base-T Ethernet Transformer Module SMT Single Port 0
