Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL, Reach, RoHs, ISO19001, ISO14001
Model Number: HB4011HLT
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: $0.09-$2.00
Packaging Details: Tape and Reel
Delivery Time: 1-3 Weeks
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6000K/Month
Transformer Type: |
LAN 2.5G Base-T |
Length (mm): |
17.6 |
Width (mm): |
15.9 |
Height (mm): |
6 |
Isolation Voltage (V): |
1500VAC |
Operating Temperature: |
0℃ - +70℃ |
Application: |
Ethernet Transformer/Choke |
Transformer Grade: |
Commercial Grade |
Transformer Type: |
LAN 2.5G Base-T |
Length (mm): |
17.6 |
Width (mm): |
15.9 |
Height (mm): |
6 |
Isolation Voltage (V): |
1500VAC |
Operating Temperature: |
0℃ - +70℃ |
Application: |
Ethernet Transformer/Choke |
Transformer Grade: |
Commercial Grade |

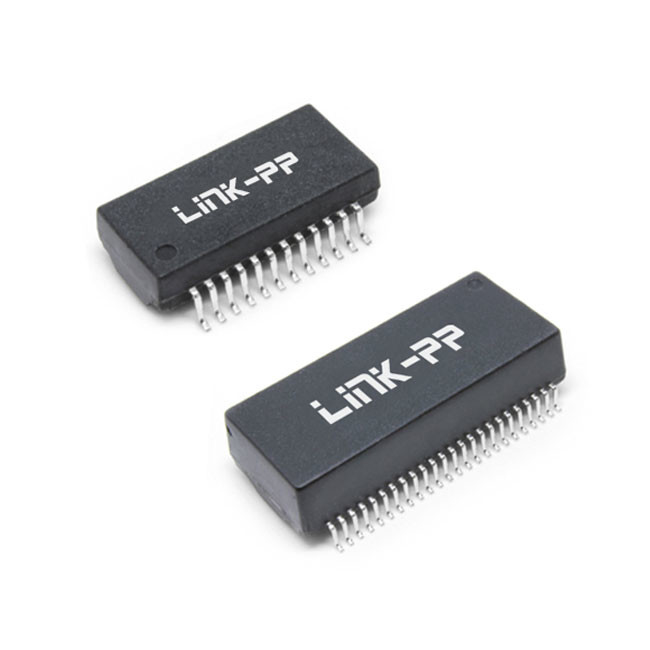

| Products Overview | HB4011HLT Single Port Transformer Module |
|---|---|
| Number of Ports | 1 |
| Mounting Style | 24 Pin SMD |
| Date Rate | 2.5GBASE-T |
| Length | 17.55mm |
| Width | 15.90mm |
| Height | 6.00mm |
| Breakdown Voltage | 3000Vrms (Surge DM 7KV) |
| Winding Configuration | 2wCMIC X FM |
| Turns Ratio | 1CT:1CT |
| PoE Rating | N/A |
| Operating Temperature | 0 - 70°C |
| Storage Temperature | -20 - +125°C |
HB4011HLT Schematic:
Packaging Details:
1. Material: Black Anti-Static polystyrene.
2.10 sprocket hole pitch cumulative tolerance ±0.20.
3. All dimensions meet ElA-481-E requirements.
4. Thickness: 0.40±0.05 mm.
5. Component load per 13" reel: 350 pcs.
