Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: HB4009HLT
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: $0.09-$2.02
Packaging Details: Tape and Reel
Delivery Time: Ships within 15 days
Payment Terms: TT, NET30/60/90 Days
Supply Ability: 6000K-PCS/Month
Product Name: |

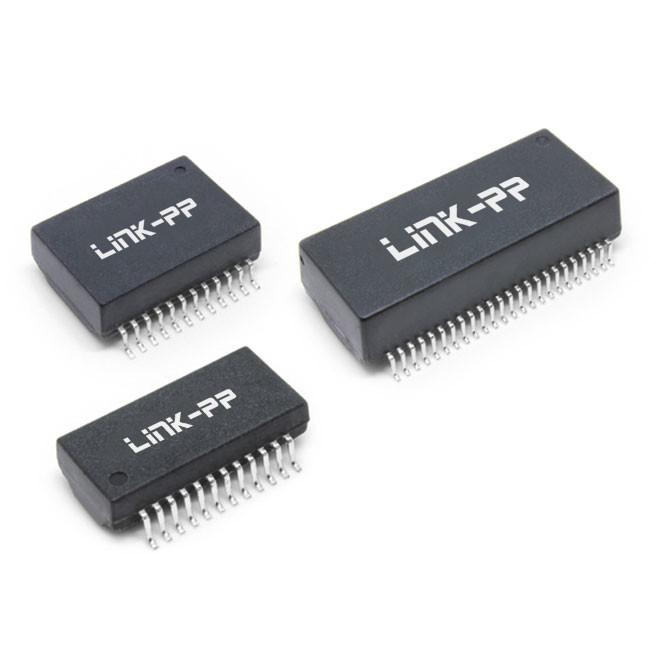

HB4009HLT 2.5G Ethernet Transformer |
Number Of Channels/Ports: |
Single |
PoE: |
NON-POE |
Turns Ratio: |
1CT:1CT |
Maximum Peak Solder Temperature: |
245°C |
Moisture Sensitive Level: |
1 |
Product Name: |
HB4009HLT 2.5G Ethernet Transformer |
Number Of Channels/Ports: |
Single |
PoE: |
NON-POE |
Turns Ratio: |
1CT:1CT |
Maximum Peak Solder Temperature: |
245°C |
Moisture Sensitive Level: |
1 |
|
Product Type |
HB4009HLT Ethernet Transformer LAN Discrete Modules |
| Mounting | SMT |
| Length (mm) | 15.1 |
| Width (mm) | 10 |
| Height (mm) | 4 |
| Application | ETHERNET TRANSFORMER/CHOKE |
| Data Rate | 2.5GBASE-T |
| Number of Channels/Ports | SINGLE |
| PoE | NON-POE |
| Turns Ratio | 1CT:1CT |
| Temperature | 0 to +70°C |
| Safety Insulation | Built-in |
| Isolation Voltage (V) | 1500VAC |
| RoHS Status | Fully ROHS Compliant |
| Halogen Free | YES |
1. Storage Temperature: -20 to +125°C
2. Compliance to JEDEC-J-STD 020:
i. Moisture Sensitive Level 1
ii. Maximum peak Reflow Solder temperature 245°C
3. All parts come in 13” (330mm) Diameter Tape and reel
4. Header: Black Thermoset Plastic - Material flammability rating UL 94V-0
5. Lead Frame: Cooper Alloy
6. Underplate / Overplate: Tin electro-deposited over Nickel
7. Finish: Matte finish Tin solder
