Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

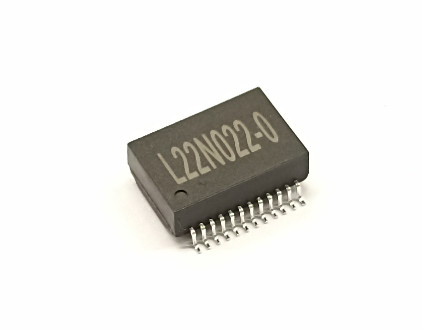

Model Number: L22N022-0
Payment & Shipping Terms
Minimum Order Quantity: 400pcs
Price: $0.06-$3.0
Packaging Details: 400pcs per reel
Delivery Time: About 1-2 weeks
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6KK/Month
Speed Rate: |
5G/2.5G Base –T |
Type: |
SMD |
Number Of Ports: |
1 |
PoE: |
Non PoE |
Operating Temperature: |
0~+70℃ |
Size: |
18.1 X 16 X 6.2mm |
Pins Number: |
24 |
Pin Pitch: |
1.27mm |
Circuits: |
3C+T |
CMC: |
PHY |
Speed Rate: |
5G/2.5G Base –T |
Type: |
SMD |
Number Of Ports: |
1 |
PoE: |
Non PoE |
Operating Temperature: |
0~+70℃ |
Size: |
18.1 X 16 X 6.2mm |
Pins Number: |
24 |
Pin Pitch: |
1.27mm |
Circuits: |
3C+T |
CMC: |
PHY |
1. Designed to Support 5G/2.5G Base-T Transceivers.
2. Compliant with IEEE 802.3bz Standard.
3. Supports 4 pairs of category 6 or greater cable.
4. Cable interface for isolation and low common mode emissions.
5. Compliant with RoHS&Halogen Free requirements.
6. Qualified with top 5Gig PHY Manufacturers
7. RoHS peak reflow temperature rating 250℃
8. Low profile package for PCI Express
9. Fine-tuned magnetics to specific PHY vendors
10. Operating Temperature : 0°C to +70°C, Storage Temperature: -25°C to +105°C.
|
Type |
Balance low pass 100Ω impedance |
|
Turns Ratio(±5%) |
1:1 |
|
Inductance |
160uHMin @ 100KHz, 0.1V, 8mA DC BIAS |
|
Insertion Loss |
-0.5 dB Max @ 1-50MHz -1.0 dB Max @ 50-125MHz -2.0 dB Max @ 125-300MHz |
|
Return Loss |
-20 dB Min load 100Ω @ 1-50MHz -20+8*log(f/50MHz) dB Min load 100Ω @ 50-200MHz -15+30*log(f/200MHz) dB Min load 100Ω @ 200-300MHz |
|
Reflected CM to Diff Conversion (REF) |
-30 dB Min @ 1MHz -30 dB Min @ 50MHz -27 dB Min @ 100MHz -24 dB Min @ 200MHz -22 dB Min @ 300MHz |
|
CM to DM Conversion (REF) |
-35 dB Min @ 1-50MHz
-30 dB Min @ 125MHz
-27 dB Min @ 200MHz
-24 dB Min @ 300MHz
|
| Reflected Diff to CM Conversion (REF) |
-48 dB Min @ 1-10MHz
-48+19*log(Freq MHz/10MHz) dB Min @ 10-300MHz
|
|
CM to CM Attenuation |
-25 dB Min @ 1-200MHz -20 dB Min @ 200-300MHz |
|
Cross Talk |
-30 dB Min @ 1-125MHz -25 dB Min @ 125-300MHz |
|
Hipot Test |
1500Vrms Min |
