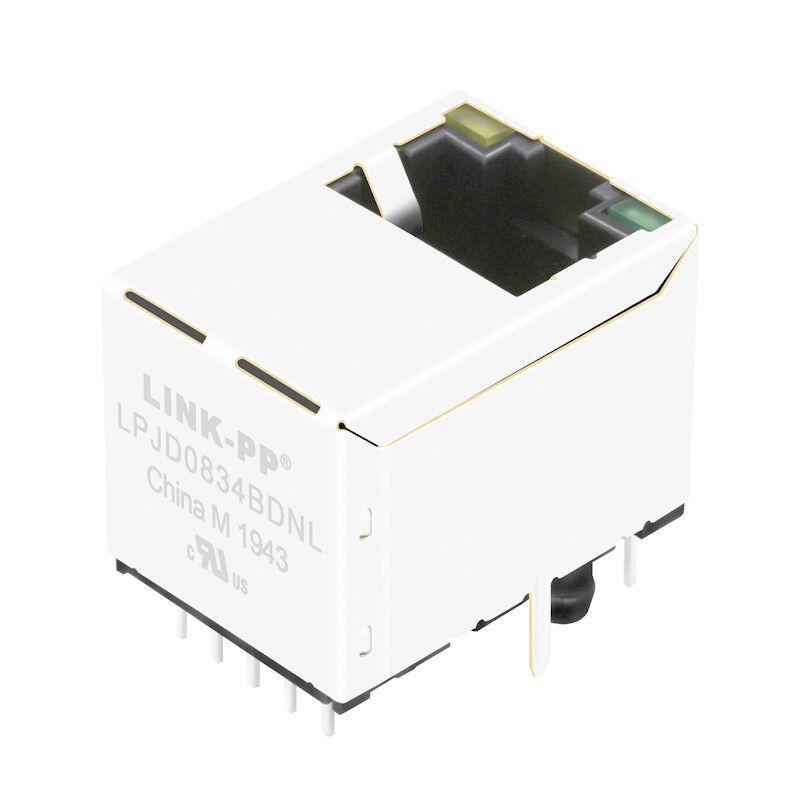

V890-1AX1-A1 Vertical RJ45 Socket , LPJD0834BDNL 1x10/100/1000Mbps

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: V890-1AX1-A1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 40PCS/Tray,16Trays=640PCS=37*30*30CM=7KG/Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

modular jacks rj45

,

multi port connector

Part Number:
V890-1AX1-A1
Specification:
LPJD0834BDNL
Part No:
LPJD0834BDNL
Apllication:
1x10/100/1000Mbps
Mounting:
Vertical 180 Degree
Samples:
Available
Part Number:
V890-1AX1-A1
Specification:
LPJD0834BDNL
Part No:
LPJD0834BDNL
Apllication:
1x10/100/1000Mbps
Mounting:
Vertical 180 Degree
Samples:
Available
V890-1AX1-A1 Vertical RJ45 Socket , LPJD0834BDNL 1x10/100/1000Mbps
V890-1AX1-A1 Vertical RJ45 Socket , LPJD0834BDNL 1x10/100/1000Mbps



Specification

PN

Manufacturer Description

V890-1AX1-A1

LPJD0834BDNL

LINK-PP

Vertical Rj45 Jack With Integrated Magnetic

Series Connector Type Applications Mounting Type
Connectors, Interconnects LINK-PP Female Rj45

1000Mbps

Thru-Hole
Orientation Termination LED Color Shielding

180°(Vertical)

Solder Y&G Shielded
Vertical Rj45 With Magnetics / Vertical Rj45 Socket
LPJD0834BDNL
Electronics Specifications @25℃
1.TURNS RATIO(%%P3%):
TX=1CT:1CT RX=1CT:1CT
2.OCL(100KHz,0.1V,8mA): 350uH MIN
3.HIPOT(Isolation Voltage): 1500Vrms
4.INSERTION LOSS:
-1.1dB MAX @ 1MHz TO 100MHz
5.RETURN LOSS(100 OHMS %%P15%):
-18dB MIN @ 1MHz TO 40MHz
-14dB MIN @ 60MHz
-12dB MIN @ 80MHz
-10dB MIN @ 100MHz
6.CROSS TALK:
-40dB MIN @ 1MHz TO 30MHz
-30dB MIN @ 30MHz TO 60MHz
7.CM TO CM REJ:
-20dB MIN @ 1MHz TO 100MHz
8.OPERATING TEMPERATURE RANGE:0℃~+70℃.



V890-1AX1-A1 Vertical RJ45 Socket , LPJD0834BDNL 1x10/100/1000Mbps 0 V890-1AX1-A1 Vertical RJ45 Socket , LPJD0834BDNL 1x10/100/1000Mbps 1
