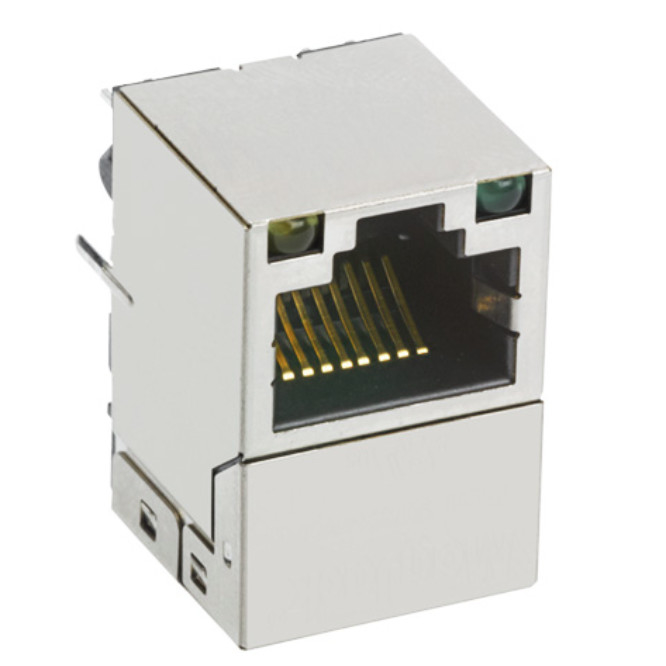

Vertical RJ45 Magjack SI-46019-F 1X1 Support 10/100Base T Speed

Product Details

Place of Origin: Guangdong, China

Brand Name: LINK-PP

Certification: RoHS

Model Number: SI-46019-F

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000pcs

Price: Negotiable

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 5000K.PCS/Month

Get Best Price
Highlight:

SI-46019-F

,

Vertical RJ45 Magjack

,

Vertical Mount MagJack

Number Of Ports:
1
Number Of Rows:
1
Mounting Type:
Through Hole
Orientation:
Vertical
LED Color:
Yellow - Green
Shielding:
Shielded
Contact Material:
Copper Alloy
Contact Finish:
Selective Gold
Number Of Ports:
1
Number Of Rows:
1
Mounting Type:
Through Hole
Orientation:
Vertical
LED Color:
Yellow - Green
Shielding:
Shielded
Contact Material:
Copper Alloy
Contact Finish:
Selective Gold
Vertical RJ45 Magjack SI-46019-F 1X1 Support 10/100Base T Speed

Features of 100Base T RJ45 Connector with Magnetic:

• Meets IEEE 802.3 10/100Base-T electrical requirements
• 100% hi-pot tested in production
• Comes with many different LED color combinations and options
• 50 micro-inches of gold plated contacts
• Lead-free wave-solder compatible
• UL recognized
• RoHS 6/6 compliant
• Vertical Mount Configuration
• 10/100BT AutoMDIX
• Can be used on non-traditional PCB mount applications


SI-46019-F RJ45 Magnetic Jack​ Specification:



Part Number

Number of Ports

Manufacturer

Description

SI-46019-F

1X1

LINK-PP

10/100 Base-T Through Hole RJ45 MagJack

Series

Port Configuration

Speed

Operating Temperature

RJ45 Magjack

Vertical

10/100Mbps

0 to 70°C

LED Type

Height Profile

EMI Tabs

PoE Rating

Y/G Standard No N/A


ELECTRICAL SPECIFICATIONS:


Turn Ratio(±3%)

 (P6-P5-P3):(J6-J3) = 1CT:1CT
 (P6-P5-P3):(J6-J3) = 1CT:1CT

Inductance OCL

 (P6-P3) = 350uH MIN/@ 100KHz, 0.1V, 8mA DC Bias
 (P2-P1) = 350uH MIN/@ 100KHz, 0.1V, 8mA DC Bias

Leakage Inductance

 P6-P3 (With J6 and J3 Short) = 0.3 MAX. @ 1MHz
 P2-P1 (With J2 and J1 Short) = 0.3 MAX. @ 1MHz

Interwinding Capacitance

 (P6,P5,P3) To (J6,J3) = 35pf MAX. @ 1MHz
 (P2,P4,P1) To (J2,J1) = 35pf MAX. @ 1MHz

DC Resistance  (J6-J3) = (J2-J1) = 1.2 ohms Max

Insertion Loss
RS = RL = 100 ohms

 1.1dB TYP @ 100KHz to 100MHz

Return Loss
(P6-P3) = 100 ohms
(P1-P2) = 100-ohm Ref

 18dB MIN @ 1-30MHz

 12dB MIN @ 60-80MHz

Cross talk

 40dB TYP @ 100KHz to 100MHz

Common to Common Mode Attenuation

 35dB TYP @ 30MHz-100MHz

Voltage Withstand

 (J1,J2) TO (P1,P2) = 1500VAC
 (J3,J6) TO (P3,P6) = 1500VAC

Rise Time
RS = RL = 100 ohms

 Output Voltage = 1V peak - 3.0 nS MAX
 Pulse Width = 112nS - 3.0 nS MAX

Operating Temperature Range

 0℃ TO 70℃



Applications of Single Port RJ45 MagJack:

• Storage

• Switches

• Routers

• Servers

• Workstations

• Motherboards

• Blade servers or cards

• Network Interface cards

• Laptop computers

• Storage systems

• Mezzanine cards

• Single-board motherboards

• Industrial controllers

• Industrial PCs

• Daughter cards

• Printers
