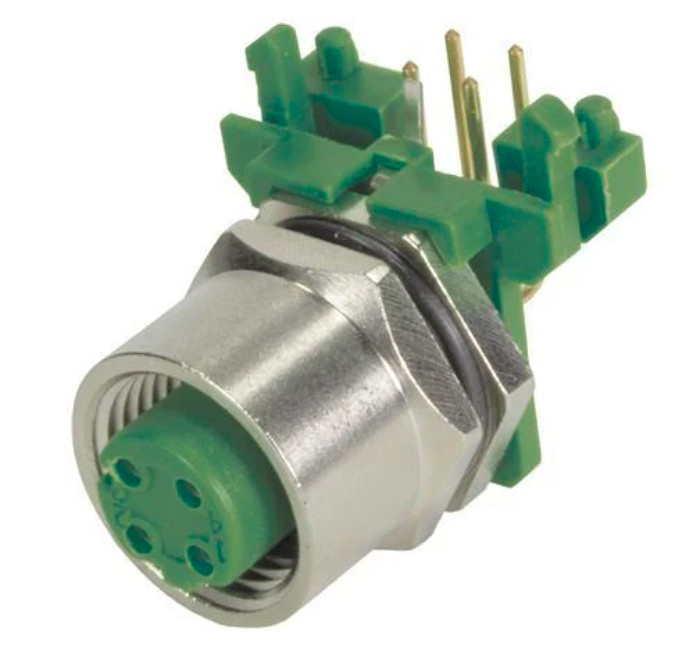

21033814440 Circular Connector M12 Angled For Rear Mounting

Product Details

Place of Origin: HuiZhou, China

Brand Name: LINK-PP

Certification: RoHS Compliant

Model Number: 21033814440

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiable

Packaging Details: Bulk,1piece in a bag

Delivery Time: 2-3 Weeks

Payment Terms: TT, NET30/60/90 Days

Supply Ability: 5KK/Month

Get Best Price
Highlight:

21033814440

,

Circular Connector M12

,

4 Pin M12 Female Connector

Part Number:
21033814440
Series:
M12 Circular Connector
Termination Method:
Wave Soldering Termination
Gender:
Female
Shielding:
Shielded
Number Of Contacts:
4
Coding:
D-coding
Locking Type:
Screw Locking
Part Number:
21033814440
Series:
M12 Circular Connector
Termination Method:
Wave Soldering Termination
Gender:
Female
Shielding:
Shielded
Number Of Contacts:
4
Coding:
D-coding
Locking Type:
Screw Locking
21033814440 Circular Connector M12 Angled For Rear Mounting

Description of 4 Pin M12 Female Connector :



The 21033814440 M12 Connector is a shielded, 4-pin female plug designed for wave soldering termination, suitable for industrial environments. It features D-coding, screw locking, and is rated for 4 A and 250 V. This connector supports Cat. 5 Class D data transmission up to 100 MHz at speeds of 10/100 Mbit/s, with an insulation resistance greater than 108 Ω. Its materials include polyamide for the insert, gold-over-nickel plated copper alloy contacts, and a copper-zinc alloy housing. It is UL 94 V-0 rated for flammability and provides IP67 protection, operating between -40 to +85 °C. The 4-pin configuration is common for transmitting signals and power. This M12 Circular Connector is ideal for secure and reliable data transmission in industrial environments.

Technical characteristics of 21033814440 Female M12 Connector:





Series

Circular connectors M12

Element

PCB adapter

Connector Type Plug, Female Sockets
Shell Size - Insert M12-4
Termination Wave soldering
Fastening Type Threaded
Orientation D
Rated current 4 A
Rated voltage 250 V
Pollution degree 3
Transmission characteristics Cat. 5 Class D up to 100 MHz
Data rate 1‌0/100 Mbit/s
Insulation resistance >108 Ω
Tightening torque 1 Nm Lock nut
Limiting temperature -40 ... +85 °C
Mating cycles ≥ 100
Protection IP67 - Dust Tight, Waterproof
Material (insert) Polyamide (PA)
Material (contacts) Copper alloy
Surface (contacts) Au over Ni Mating side
Material (hood/housing) Copper-zinc alloy
Material flammability class UL 94 V-0

21033814440 M12 Connector Dimensions (mm):



21033814440 M12 Connector Dimensions



21033814440 Recommended PCB Layout:



21033814440 Recommended PCB Layout
