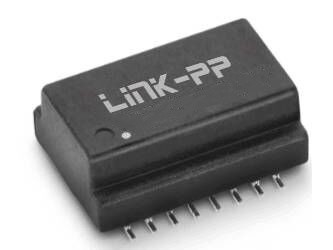

Product Details
Place of Origin: HuiZhou, China
Brand Name: LINK-PP
Certification: RoHS Compliant
Model Number: 7490240142
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: $1.8-$2.5
Packaging Details: Tape & Reel (TR)
Delivery Time: 1-2 Weeks
Payment Terms: TT, NET30/60/90 Days
Supply Ability: 5KK/Month
Part Number: |
7490240142 |
Series: |
1000base T Transformer |
Port: |
1 |
PoE: |
Non-PoE |
Improved CMRR: |
NO |
Mount: |
SMT |
Inductance: |
350µH |
Operating Temperature: |
-40 °C To +85 °C |
Part Number: |
7490240142 |
Series: |
1000base T Transformer |
Port: |
1 |
PoE: |
Non-PoE |
Improved CMRR: |
NO |
Mount: |
SMT |
Inductance: |
350µH |
Operating Temperature: |
-40 °C To +85 °C |
Properties | Test conditions | | Unit | Tol. |
|---|---|---|---|---|
Inductance | 100 kHz / 100 mV @ 8 mA | 350 | µH | min. |
| Insulation Test Voltage | 1 min. | 4000 | V (RMS) | min. |
| DC Resistance | 100 kHz / 100 mV (Pins 13-24) | 1300 | mΩ | max. |
| Insertion Loss | 1-100 MHz | -1.2 | dB | max. |
| Return Loss | 1-30 MHz @ 100 Ω | -14 | dB | min. |
| Return Loss | 30-60 MHz @ 100 Ω | -12 | dB | min. |
| Return Loss | 60-80 MHz @ 100 Ω | -9 | dB | min. |
| Return Loss | 80-100 MHz @ 100 Ω | -8 | dB | min. |
| Differential to Common Mode Rejection Ratio | 1-30 MHz | -35 | dB | min. |
| Differential to Common Mode Rejection Ratio | 30-60 MHz | -32 | dB | min. |
| Differential to Common Mode Rejection Ratio | 60-100 MHz | -30 | dB | min. |
| Crosstalk | 1-60 MHz | -35 | dB | min. |
| Crosstalk | 60-100 MHz | -30 | dB | min. |
| Turns Ratio | 1:1 | ±2% | ||
| Data rate | 1000 Base-T | |||
| Working Voltage | 600 | V (RMS) | max. | |
| Working Voltage | 250 | V (RMS) | max. | |
| Clearance distance | 6 | mm | min. | |
| Creepage distance | 10.5 | mm | min. | |
