Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 5-2301995-4
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.7-$1.5
Packaging Details: 50pcs per Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Features: |
Board Lock |
Number Of Ports: |
1 |
Number Of Rows: |
1 |
Applications: |
10/100/1000 Base-T, AutoMDIX |
Mounting Type: |
Through Hole |
PCB Mount Orientation: |
Vertical |
Termination: |
Solder |
LED Color: |
Green, Yellow - Green, Yellow |
Shielded: |
Yes |
Tab Direction: |
Up |
Number Of Positions: |
8 |
Operating Temperature Range: |
-40 – 85 °C [ -40 – 185 °F ] |
UL Flammability Rating : |
UL 94V-0 |
Performance Category: |
Cat 5e |
Features: |
Board Lock |
Number Of Ports: |
1 |
Number Of Rows: |
1 |
Applications: |
10/100/1000 Base-T, AutoMDIX |
Mounting Type: |
Through Hole |
PCB Mount Orientation: |
Vertical |
Termination: |
Solder |
LED Color: |
Green, Yellow - Green, Yellow |
Shielded: |
Yes |
Tab Direction: |
Up |
Number Of Positions: |
8 |
Operating Temperature Range: |
-40 – 85 °C [ -40 – 185 °F ] |
UL Flammability Rating : |
UL 94V-0 |
Performance Category: |
Cat 5e |

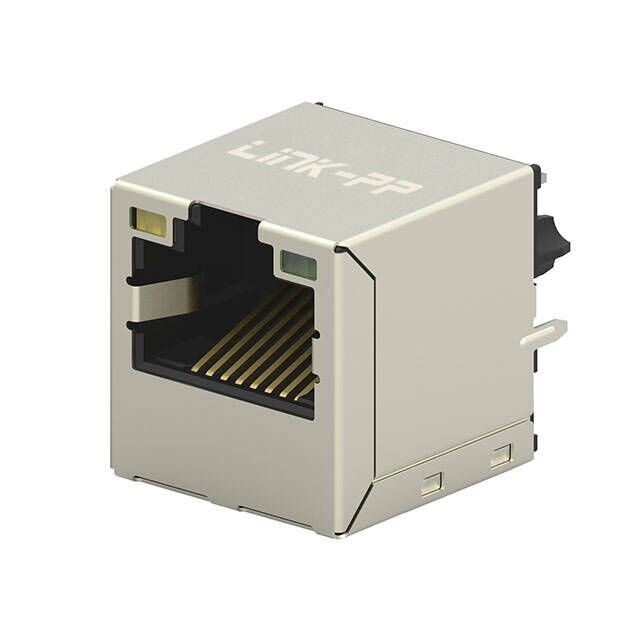

The 5-2301995-4 is an industrial-grade RJ45 connector with integrated magnetics. This single-port (1x1) connector features standard contact density and is shielded to protect against electromagnetic interference. It is compatible with Cat 5e cables, and supports 1000Mb/s high-speed Data Rate. The 5-2301995-4 RJ45 Connector is widely used in industrial automation, networking equipment, and telecommunications. Additionally, it is also used for embedded systems and IoT devices.
1. Turn Ratio @100kHz:
(P1~ P2):(J1~ J2)= 1:1±2%
(P3~ P4):(J3~J6)= 1:1±2%
(P7~ P8):(J4~J5)= 1:1±2%
(P9~P10):(J7~J8)= 1:1±2%
2. PrimaryInductance: 350MH MIN. @100kHz, 0.1V 8mA DC BIAS
3. DC Resistance:1.2 OHMS MAX
4. Insertion Loss
-1.0dB MAX @ 1-100MHz
-1.2dB MAX @ 100-125MHz
5. Return Loss:
-16dB MIN @ 1-40MHz
-12dB MIN @ 40-60MHz
-10dB MIN @ 60-80MHz
-8dB MIN @ 80-100MHz
6. CROSS TALK:
-30dB MIN1-100MHz
7. COMMON TO COMMON MODE ATTENUATION: -30dB MIN @ 1-100MHz
8. Isolation: PHY Side to Line Side: 2250VDC
