Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: UTG36T06
Payment & Shipping Terms
Minimum Order Quantity: 400pcs
Price: $0.06-$3.0
Packaging Details: 400pcs per reel
Delivery Time: About 1-2 weeks
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6KK/Month
Speed: |
1000M Base-T |
PoE: |
Non PoE |
Operating Temperature: |
0~+70℃ |
Size: |
32.70 X 8.50 X 11.60 Mm |
Pins Number: |
36 |
Topology: |
T+CMC |
Speed: |
1000M Base-T |
PoE: |
Non PoE |
Operating Temperature: |
0~+70℃ |
Size: |
32.70 X 8.50 X 11.60 Mm |
Pins Number: |
36 |
Topology: |
T+CMC |

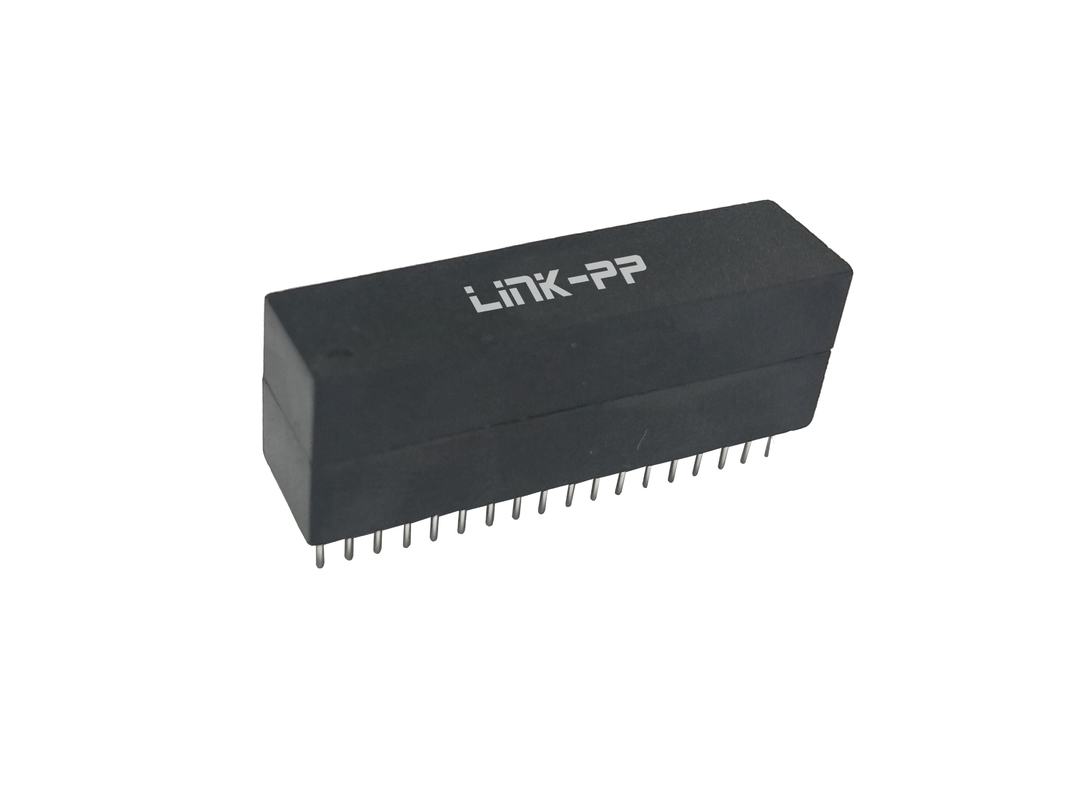

The UTG36T06 is a high-performance dual-port datacom transformer designed for 1000 BASE-T applications. Its robust through-hole mounting design ensures stability and durability in demanding network environments. This transformer is optimized for non-PoE (Power over Ethernet) applications, offering reliable signal integrity and isolation.
| Parameter | Value |
|---|---|
|
Isolation Voltage |
1500 V |
|
Primary Inductance |
350 µH |
|
Operating Temperature (Max) |
+70°C |
|
Operating Temperature (Min) |
0°C |
|
Speed |
1000M Base-T |
|
Port |
Dual |
|
Circuit Feature |
Non-PoE |
|
Package |
THT |
|
Pin Number |
36 |
|
Topology |
T+CMC |
|
Hi-Pot |
1500 AC |
|
Length (L) |
32.70 mm |
|
Width (W) |
8.50 mm |
|
Height (H) |
11.60 mm |
1. What is Hi-Pot?
Hi-Pot, short for High Potential, is a high-voltage test used to ensure the electrical insulation of transformers. This test involves applying a high voltage between the conductors and the insulation to verify that the insulation can withstand the high voltage without damage.
2. Role of Hi-Pot testing in LAN transformers:
3. Common industry requirements for LAN transformers are 1500 AC withstand voltage values, which generally ensure that the insulation layer can withstand the standard working voltage plus a safety margin. In some cases, specific applications or higher safety standards may require higher withstand voltage values, for example, transformers used in PoE applications or industrial environments may have higher withstand voltage requirements.
