2.5G BASE-T Dual Port Ethernet Transformer Modules LP75001ANL

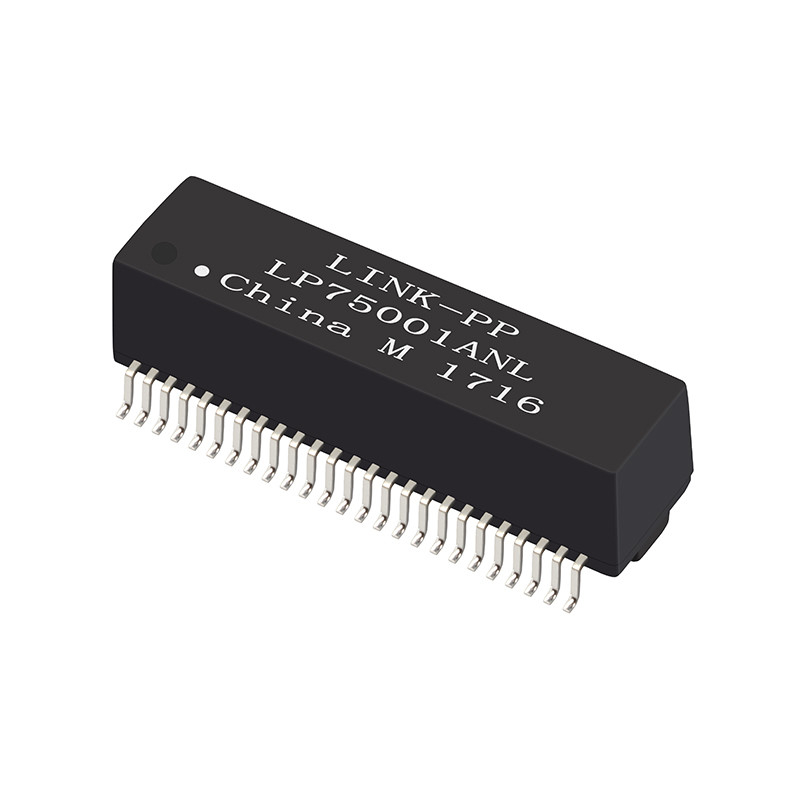

LP75001ANL Transformer Module Overview:

The LP75001ANL is a dual-port Ethernet transformer module designed to support 2.5G BASE-T data rates. It fully complies with IEEE 802.3 standards and comes in a surface-mount package, making it ideal for modern network systems, including LAN-on-Motherboard (LOM) setups, hubs, switches, and more.

Key Features:

1. Supports 2.5G BASE-T High Data Rate.
2. The LAN Transformer module is equipped with a dual port configuration.
3. Features an open frame construction with dimensions of 1.1 inches (L) x 0.441 inches (W) x 0.338 inches (H).
4. -40°C to +85°C Wide Operating Temperature.
5. Offers a 1500VrmsHigh Isolation Voltage providing excellent electrical isolation and safety.
6. The LP75001ANL is RoHS and REACH Compliant.
7. UL Certification (file number E484635), ensuring adherence to high safety and quality standards.

Electrical Specifications @25°C:

• Turns Ratio (Primary): 1CT:1CT ±5%
• Inductance (OCL): 160µH Min @ 100KHz, 100mV
• Insertion Loss: -1.2 dB Max (1-125MHz)
• Return Loss: -18 dB Min (1-40MHz), -12 dB Min (40-80MHz), -10 dB Min (125MHz)
• Crosstalk: -40 dB Min (30MHz), -35 dB Min (60MHz), -30 dB Min (80MHz)
• Common Mode Rejection: -35 dB Min (30MHz), -30 dB Min (100MHz), -25 dB Min (125MHz)

Applications:

• Networking Equipment: Ideal for use in switches, routers, and other networking hardware.
• Industrial and Commercial Systems: Suitable for automation systems, security systems, and other industrial applications.
• SOHO (Small Office/Home Office) Environments: Perfect for devices like ADSL modems and other small-scale network infrastructure.
• Embedded Systems: Can be integrated into various embedded applications for reliable network connectivity.

Packaging Details:

• Package: Tape & Reel
• SPQ: 350 pcs per reel
• Carton Size: 37cm x 37cm x 25cm
• Quantity per Carton: 1400 pcs
• Gross Weight per Carton: 7 kg
• Net Weight per Piece: 0.005 kg
