Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H5007NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.3-$1.2
Packaging Details: T&R
Delivery Time: Ships within 3 days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5KK/Month
Mounting: |
SMT |
Data Rate: |
1000BASE-T |
Number Of Channels/Ports: |
Single |
PoE: |
NON-POE |
Turns Ratio: |
1:1 |
Isolation Voltage: |
1500 Vrms Min |
Length: |
17.53 Mm |
Width: |
16 Mm |
Height: |
5.72 Mm |
Application: |
Gigabit Ethernet PHY Interfaces |
Part Number: |
H5007NL |
Temperature Range: |
0°C To +70°C |
Mounting: |
SMT |
Data Rate: |
1000BASE-T |
Number Of Channels/Ports: |
Single |
PoE: |
NON-POE |
Turns Ratio: |
1:1 |
Isolation Voltage: |
1500 Vrms Min |
Length: |
17.53 Mm |
Width: |
16 Mm |
Height: |
5.72 Mm |
Application: |
Gigabit Ethernet PHY Interfaces |
Part Number: |
H5007NL |
Temperature Range: |
0°C To +70°C |

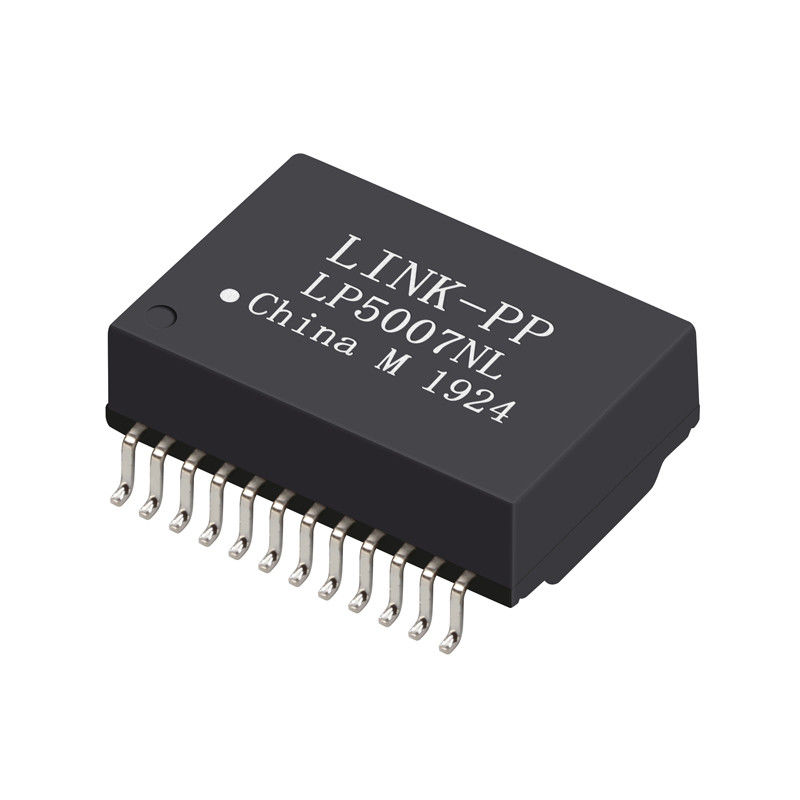

H5007NL is a high-performance 1000BASE-T Ethernet magnetics module with 1CT:1CT turns ratio, 1500Vrms isolation, low insertion loss, and excellent EMI suppression. Designed for Gigabit Ethernet PHY interfaces in switches, routers, and industrial networking equipment.
The H5007NL is a single-port SMT Ethernet magnetics module designed for 1000BASE-T Gigabit LAN applications. Featuring 1CT:1CT turns ratio, 1500Vrms isolation voltage, ultra-low insertion loss, and excellent common-mode noise rejection, it ensures stable, high-speed Ethernet signal integrity for switches, routers, IP cameras, industrial controllers, and telecom equipment.
This module fully complies with IEEE 802.3 specifications and is optimized for high-density PCB layouts and automated reflow soldering assembly.
| Parameter | Specification |
|---|---|
| Part Number | H5007NL |
| Description | Single-Port 1000BASE-T Ethernet Magnetics Module |
| Data Rate | 1000BASE-T (1 Gbps) |
| Turns Ratio | 1CT : 1CT |
| Isolation Voltage | 1500 Vrms min |
| Mounting Style | Surface Mount (SMD / SMT) |
| Temperature Range | 0°C to +70°C |
| RoHS | Yes |
| Reflow Rating | 245°C peak |
| Parameter | Specification |
|---|---|
| OCL | ≥ 350 µH @100 kHz, 100 mV, 8 mADC bias |
| Insertion Loss | 1–65 MHz: ≤ -1.0 dB 65–100 MHz: ≤ -1.1 dB 100–125 MHz: ≤ -1.5 dB |
| Return Loss | 1–30 MHz: ≥ -18 dB 40 MHz: ≥ -18 dB 50 MHz: ≥ -16 dB 60–80 MHz: ≥ -12 dB 100 MHz: ≥ -10 dB |
| Crosstalk | 30 MHz: ≥ -45 dB 60 MHz: ≥ -40 dB 100 MHz: ≥ -35 dB |
| DCMR | 30 MHz: ≥ -43 dB 60 MHz: ≥ -37 dB 100 MHz: ≥ -33 dB |
| Isolation | ≥ 1500 Vrms |
NOTES:
Design Challenge:
Gigabit Ethernet transmission is extremely sensitive to insertion loss, return loss, crosstalk, and common-mode noise, which directly affect BER, jitter, and link stability.
Engineering Solution:
H5007NL integrates precision-matched transformer windings and optimized magnetic core materials, delivering:
This guarantees clean eye diagrams, low BER, and robust link performance in high-speed Gigabit Ethernet designs.
Design Challenge:
Discrete transformer and choke solutions significantly increase component count, routing complexity, EMI risk, and assembly cost.
Engineering Solution:
H5007NL integrates all required Gigabit magnetics into a compact SMT module, enabling:
Design Challenge:
Industrial and telecom environments introduce strong EMI and common-mode noise, leading to packet loss, link instability, and compliance failures.
Engineering Solution:
With high DCMR performance (up to -43dB @30MHz) and optimized magnetic structure, H5007NL provides excellent EMI suppression, supporting:
Design Challenge:
High-density SMT production requires reflow-compatible components with high thermal robustness.
Engineering Solution:
H5007NL is fully SMT compatible, supporting RoHS peak reflow temperature of 245°C, ideal for automated pick-and-place and reflow soldering production lines.
The H5007NL 1000BASE-T Ethernet Magnetics Module delivers carrier-grade signal integrity, robust EMI suppression, and compact SMT integration, making it a perfect choice for Gigabit Ethernet designs requiring high reliability, low BOM cost, and scalable manufacturing.
Looking for pin-compatible alternatives, cost-optimized replacements, or customized magnetics solutions? Get professional support from our engineering team.
