Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LFE8505
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.23-$1.02
Packaging Details: T&R
Delivery Time: 1-2 Weeks
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
LFE8505 |
LINK-PP Cross: |
LP1102NL |
Data Rate: |
10/100 Base-T |
Cores Per Port: |
4 |
Mounting Type: |
Surface Mount |
OCL: |
350uh Min |
Hi-pot: |
1500Vrms |
Ethernet Transformer Length: |
12.80mm |
Ethernet Transformer Width: |
9.30mm |
Ethernet Transformer Height: |
6.20mm |
Specification: |
LFE8505 |
LINK-PP Cross: |
LP1102NL |
Data Rate: |
10/100 Base-T |
Cores Per Port: |
4 |
Mounting Type: |
Surface Mount |
OCL: |
350uh Min |
Hi-pot: |
1500Vrms |
Ethernet Transformer Length: |
12.80mm |
Ethernet Transformer Width: |
9.30mm |
Ethernet Transformer Height: |
6.20mm |
|
Trader |
Manufacturer Part Number |
Manufacturer | Description |
| LFE8505 | LP1102NL | LINK-PP |

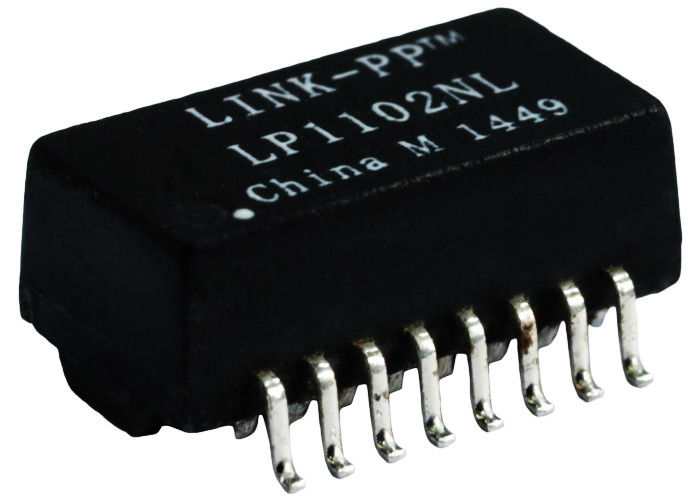

LFE8505 10 / 100Base-T SMT Ethernet Transformer |
| Series | Transformer Type | Applications | Turn Radio |
| LAN Transformer | Isolation and Data Interface | 10/100 Base-T | 1:1 |
| Mounting Type | Size / Dimension | Height - Seated (Max) | Unit Price |
| Surface Mount | 12.8mm x 9.20mm x 6.2mm | 6.20mm | $0.23-$1.02 For mass Production |
| OCL | Turns Ratio | Hipot | Operating Temperature |
| 350uH MIN | TX=1CT :1CT RX=1CT :1CT |
1500Vrms MIN | 0℃~70℃ |
|
Notes:
|
|||
SMT Ethernet Transformer Drawing:
