Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ISO,ROHS,REACH
Model Number: RVB-ZZ-0004
Payment & Shipping Terms
Minimum Order Quantity: 60pcs/480pcs/1920pcs
Price: $1.0 - $2.8
Packaging Details: Tray
Delivery Time: 1-2 Weeks
Payment Terms: T/T, L/C, Western Union, NET30/60/90 Days,
Supply Ability: 5KK/Month

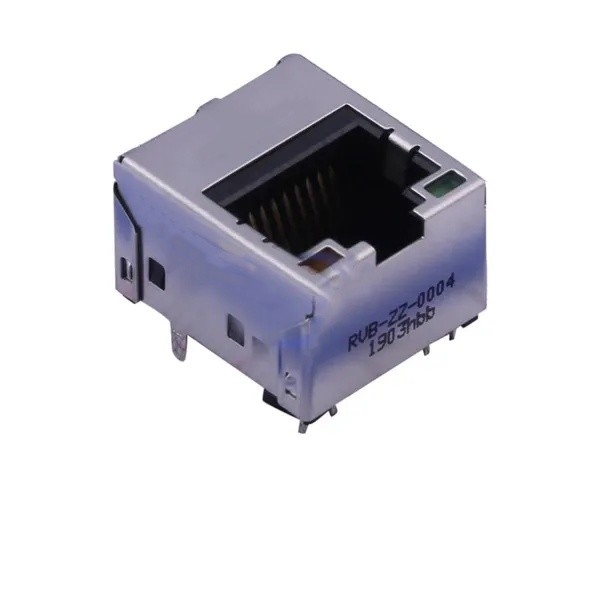

Part NO.: |
RVB-ZZ-0004 |
Connetor Type: |
RJ45 Vertical Connector |
Number Of Ports: |
1X1 |
Mounting Type: |
Through Hole |
Data Rate: |
10/100 Base-T |
LED Color: |
Green - Orange |
Tab: |
UP |
Length: |
16.00 Mm |
Width: |
18.35 Mm |
Height: |
9.95 Mm |
Part NO.: |
RVB-ZZ-0004 |
Connetor Type: |
RJ45 Vertical Connector |
Number Of Ports: |
1X1 |
Mounting Type: |
Through Hole |
Data Rate: |
10/100 Base-T |
LED Color: |
Green - Orange |
Tab: |
UP |
Length: |
16.00 Mm |
Width: |
18.35 Mm |
Height: |
9.95 Mm |
◆ RoHS peak wave solder temperature rating 265℃.
◆ Through Hole Mounting.
◆ Compliant With IEEE 802.3 Standard.
◆ 350 uH Minimum OCL With 8mA DC Bias Current.
◆ RVB-ZZ-0004 is designed to meet electrical, mechanical and environmental performance requirements.
◆ 750 cycles Durability.
◆ Operating Temperature : 0°C to +70°C.
◆ Storage Temperature : -40°C to +85°C.
◆ RJ45 Connector With LED.
◆ 500MΩ min. Insulation Resistance.
◆ All parts shall be packaged and packed to protect against physical damage, corrosion and deterioration during shipment and storage.
| Insertion loss | 1~100MHz: -1.0dB Max. |
| Return loss |
1~30MHz: -18dB Min. load 100Ω 30~60MHz: -16dB Min. load 100Ω 60~80MHz: -12dB Min. load 100Ω |
| Common Mode Rejection | -30dB Min.@1~100 MHz |
| Cross Talk | -30dB MIN. @ 1~100MHz |
| Inductance (OCL) @ 100KHz, 0.1V, 8mA DC BIAS | 350 μH Min. |
| HiPot Test | 1500Vac 60s or 2250Vdc 60s |
| TURN RATIO | 1:1 ±2% |
| Green Emitting Color | 570nm λp |
| Orange Emitting Color | 605nm λp |
