Model Number: TGMR-501V6LF
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.7-$1.7
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5KK/Month
Part Number: |
TGMR-501V6LF |
Transformer Type: |
H-Bridge Transformer |
Turns Ratio: |
1:1 |
Isolation: |
5,000 Vrms |
Operating Temp: |
-40°C To +85°C |
Package Height (max): |
0.25 Inch (6.35 Mm) |
Part Number: |
TGMR-501V6LF |
Transformer Type: |
H-Bridge Transformer |
Turns Ratio: |
1:1 |
Isolation: |
5,000 Vrms |
Operating Temp: |
-40°C To +85°C |
Package Height (max): |
0.25 Inch (6.35 Mm) |

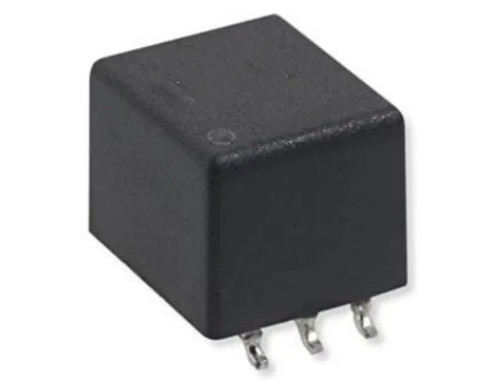

Descriptions of TGMR-501V6LF HALO Transformers:
The TGMR-501V6LF 6-pin transformers have been designed specifically to work in conjunction with the Maxim Integrated Products’ MAX13256 H-bridge driver. These reinforced isolation modules are UL/EN60950 and DEMKO recognized for working voltages up to 300 Volts. The 8-36 volt supply range of the MAX13256 makes this circuit Ideal for applications such as Power Meters, PLC 24-volt supply isolation, Medical equipment, and isolated Fieldbus interfaces.
Specifications:
|
SMD 5KV Transformers For Maxim’s MAX13256 H-Bridge Driver |
|
|
Part Number |
TGMR-501V6LF |
|
Isolation Voltage |
5 kV |
|
Max Operating Temperature |
85 °C |
|
Min Operating Temperature |
-40 °C |
| Termination | SMD |
|
Application |
Maxim’s MAX13256 H-Bridge Driver |
| Mounting Type | Surface Moun |
|
Length |
10.87 mm |
|
Width |
9.45 mm |
|
Height |
10.03 mm |
|
Turns Ratio |
1:1 |
|
ET Constant |
60V-us Min |
|
Packaging |
Tube |
|
Inductance |
3mH @ 100kHz |
|
Isolation |
5000 Vrms |
