Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 955222887 / 95522-2887
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.5
Packaging Details: Tray
Delivery Time: 1-2 Weeks
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
P/N: |
5-2301995-3 |
Magnetics: |
Without |
Port Configuration : |
Single Port |
PCB Mount Orientation: |
Vertical |
Shielded: |
Unshielded |
Performance Category : |
Cat 3 |
P/N: |
5-2301995-3 |
Magnetics: |
Without |
Port Configuration : |
Single Port |
PCB Mount Orientation: |
Vertical |
Shielded: |
Unshielded |
Performance Category : |
Cat 3 |

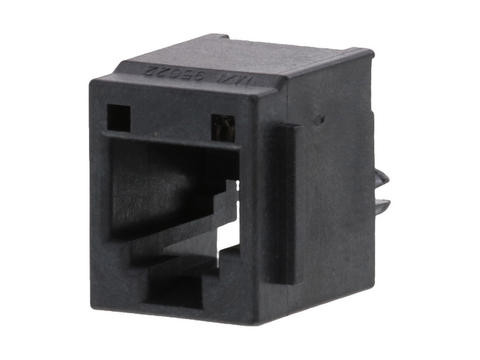

The Molex Jack 95522-2887 is a vertical through-hole PCB mounting RJ45 8P8C Connector. With its top entry configuration, high profile, and ribs, this jack ensures secure installation. It belongs to the Modular Jacks and Plugs category, offering Performance Category 3 capabilities and reflow compatibility. Although non-magnetic and not intended for Power over Ethernet, this jack is a reliable solution for telecommunications and networking setups.
|
Type |
Modular Jack Without Magnetics |
|---|---|
|
Gender |
Jack (Female) |
|
USOC Codes |
RJ45 |
|
Number of Ports |
1x1 |
|
Number of Positions / Contacts per Port |
8P8C |
|
Shielding |
Unshielded |
| Mounting Style | Through Hole |
| Mounting Angle | Vertical |
| Termination Style | Solder |
| Current Rating | 1.5 A |
| Voltage Rating | 125 VDC |
| Minimum Operating Temperature | - 40 ℃ |
| Maximum Operating Temperature | + 85 ℃ |
| LED | NO |
| Tab Direction | Top Entry |
| Application | 10 Base-T |
| Contact Material | Tin |
| Contact Plating | Gold |
| Flammability Rating | UL 94 V-0 |
