Model Number: H1601CG
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
H1601CG |
Mounting Type: |
Surface Mount |
Speed: |
10/100 Base-T |
Turns Ratio: |
1:1 Transmitter, 1:1 Receiver |
Application: |
Electronic Communication Equipment |
Operating Temperature: |
0 To + 70℃ |
Archives Available: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
H1601CG |
Mounting Type: |
Surface Mount |
Speed: |
10/100 Base-T |
Turns Ratio: |
1:1 Transmitter, 1:1 Receiver |
Application: |
Electronic Communication Equipment |
Operating Temperature: |
0 To + 70℃ |
Archives Available: |
PDF/3D/ISG/Stp/Step/Datasheet |
|
Part Number |
Manufacturer Part Number |
Manufacturer | Description |
|
H1601CG |
LP1188NL |
LINK-PP |

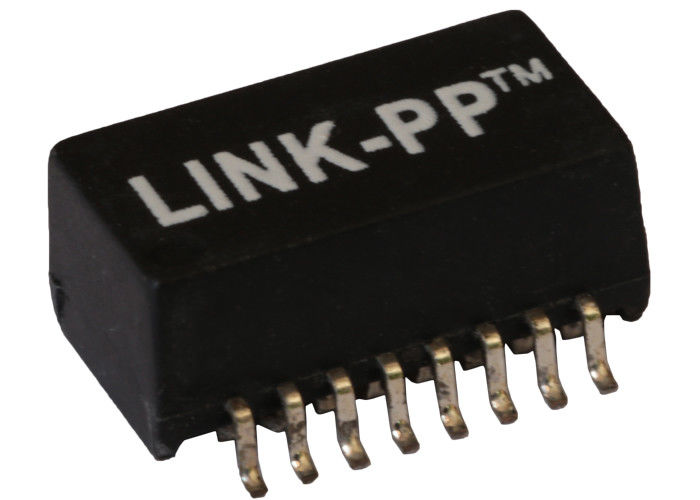

10/100 Base-T Single Port Transformer Modules |
| Port | Transformer Type | Data Rate | Turns Ratio |
| Single Port | Isolation and Data Interface | 10/100 Base-T | 1CT:1CT |
| Mounting Type | Size / Dimension | Inductor | HI-POT |
| Surface Mount | 12.8mm x 9.30mm x 5.1mm | 350uH | 1.5kV |
| PoE Function | Height - Seated (Max) | Soldering | Package |
| Non-PoE | 0.244" (6.20mm) | Reflow Soldering | Tape & Reel |
|
Features of H1601CG Ethernet Transformer:
|
|||
|
Recommended Reflow Soldering Profile:
* T = 217℃
|
|||
LAN Transformer Drawing:
----------------------Welcome To Your Enquiry. We Are Available, Always and Sincerely-------------------
