Product Details
Place of Origin: HuiZhou, China
Brand Name: LINK-PP
Certification: UL,ROHS,REACH,ISO
Model Number: 74941301
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: $0.7-$1.5
Packaging Details: Tape & Reel
Delivery Time: 1-2 Weeks
Payment Terms: D/A, Western Union, MoneyGram
Supply Ability: 6KK/Month
Product: |
SMT Transformer |
Part Number: |
74941301 |
PINs: |
6 |
Pair: |
Single |
Operating Temperature: |
-40°C To +125 °C |
Mounting Type: |
Surface Mount |
Product: |
SMT Transformer |
Part Number: |
74941301 |
PINs: |
6 |
Pair: |
Single |
Operating Temperature: |
-40°C To +125 °C |
Mounting Type: |
Surface Mount |

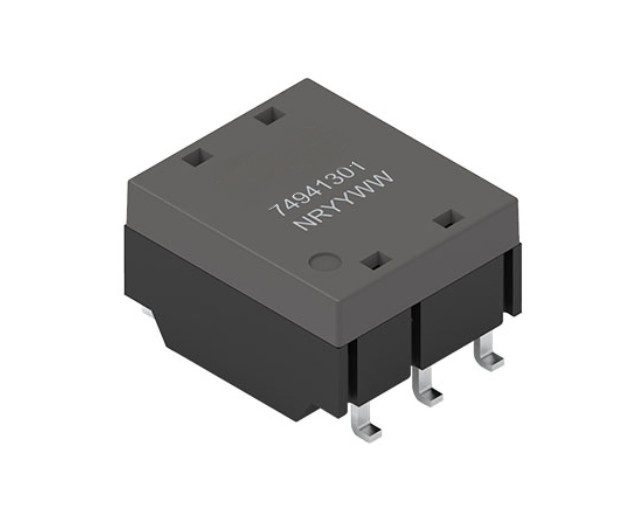

The 74941301 single-port SMT Transformer with an insulation test voltage of 4300V DC and a working voltage of 1000V DC. Its creepage distance is 5 mm, and it measures 7.6 mm in length, 9.5 mm in width, and 5.5 mm in height. It is suitable for energy storage systems, UPS, e - bikes, e - e-scooters, and the isolation of industrial interfaces.
| Product Series |
WE-BMS Transformer for Battery Management Systems |
|---|---|
| Part Number | 74941301 |
| Status | Active |
| Turns Ratio - Primary: Secondary | 1CT:1 |
| PINs | 6 PINs |
| Number of Ports | 1 Port |
| Insulation Test Voltage | 4300V DC |
| Working Voltage | 1000V DC |
| Creepage Distance | 5 mm |
| Length | 7.6 mm |
| Width | 9.5 mm |
| Height | 5.5 mm |
