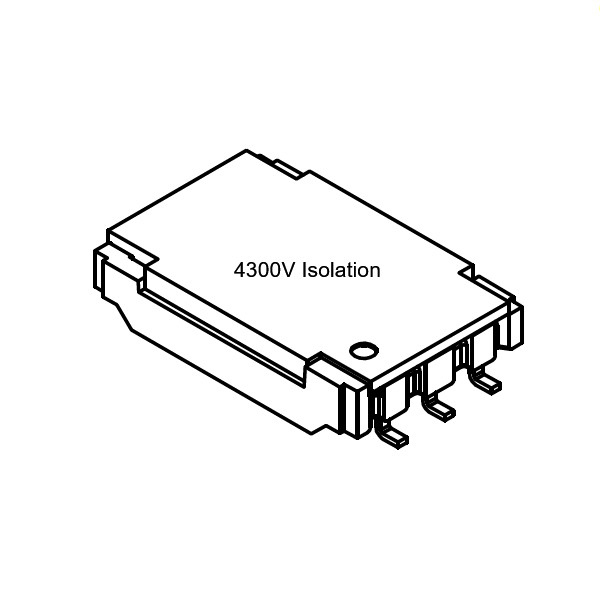

Name: 74941302 Single Pair BMS SMT Transformer With 1CT:1CT Turns Ratio
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: 74941302
Price: 1.06 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: LINK-PP

Certification: RoHS Compliant

Model Number: 74941302

Payment & Shipping Terms

Minimum Order Quantity: 50pcs

Price: Negotiable

Packaging Details: Tape & Reel

Delivery Time: 2 weeks

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 600K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    74941302, 6PINs BMS Transformer, Single Pair BMS Transformer


Part Number:	74941302	Ports:	1
Isolation Voltage:	4300V DC	Working Voltage:	1000V DC
Creepage Distance:	10mm	Length:	9.5mm
Width:	15.4mm	Height:	3.45mm

Part Number:	74941302
Ports:	1
Isolation Voltage:	4300V DC
Working Voltage:	1000V DC
Creepage Distance:	10mm
Length:	9.5mm
Width:	15.4mm
Height:	3.45mm

74941302 Single Pair BMS SMT Transformer With 1CT:1CT Turns Ratio

74941302 Ethernet Transformer-Overview:

Key Characteristics

High-Voltage Isolation – 4300 VDC test voltage (1 min) with reinforced insulation for maximum safety.
Robust Design – Supports up to 1000 VDC working voltage, ideal for high-power applications.
Integrated EMI Suppression – Built-in filter chokes for effective common-mode noise reduction.
Communication Flexibility – Compatible with serial daisy chain, isoSPI, and SPI protocols.
Compact & Versatile – Available in low-profile and multiple footprints for flexible PCB integration.
Wide Temperature Range – Operates reliably from -40°C to +125°C, suitable for harsh environments.
Automotive-Grade Reliability – Meets stringent industry standards for durability.
Space-Efficient – Low-profile design (3.45 mm height) saves PCB space.
Enhanced Safety – 10 mm creepage distance prevents arcing in high-voltage setups.

Applications: 74941302 Ethernet Transformer Ideal for Engineers designing high-isolation, noise-resistant communication in EV, industrial, and energy systems.

Energy Storage Systems (ESS) – Safe signal isolation in battery management.
Uninterruptible Power Supplies (UPS) – Reliable noise-filtered communication.
E-Bikes & E-Scooters – High-voltage protection in compact EV systems.
Industrial Interfaces – Galvanic isolation for PLCs, motor controls, and sensors.

74941302 BMS Transformer-DATASHEET:

74941302 Single Pair BMS SMT Transformer With 1CT:1CT Turns Ratio 0

74941302 Single Pair BMS SMT Transformer With 1CT:1CT Turns Ratio 1
