Product Details
Place of Origin: Guangdong, China
Brand Name: LINK-PP
Certification: UL,RoHS,REACH,ISO
Model Number: 74942400
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: $0.8-$2.3
Packaging Details: Tape & Reel
Delivery Time: 2 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 500000PCS/Week
Product Series: |
Battery Management Systems Transformer |
Part Number: |
74942400 |
Status: |
Active |
Turns Ratio - Primary: Secondary: |
1:1 |
PINs: |
12 PINs |
Number Of Ports: |
1 Port |
Insulation Test Voltage: |
6400V DC |
Working Voltage: |
1500V DC |
Creepage Distance: |
15mm |
Length: |
15.45mm |
Width: |
27.85mm |
Height: |
4.85mm |
Product Series: |
Battery Management Systems Transformer |
Part Number: |
74942400 |
Status: |
Active |
Turns Ratio - Primary: Secondary: |
1:1 |
PINs: |
12 PINs |
Number Of Ports: |
1 Port |
Insulation Test Voltage: |
6400V DC |
Working Voltage: |
1500V DC |
Creepage Distance: |
15mm |
Length: |
15.45mm |
Width: |
27.85mm |
Height: |
4.85mm |
★ Low-loss design for efficient power transfer
★ High safety distance, suitable for 1500V operating voltage environments
★ Wide operating temperature range: -40°C to +125°C
★ AEC-Q200 qualified for automotive reliability
★ RoHS compliant, meeting environmental standards
★ High insulation voltage: 6400 VDC (1 min, primary to secondary)
★ Surface-mount (SMT) design for compact PCB integration
★ 1:1 turns ratio, ensuring signal integrity
★ 12-pin configuration for robust BMS connectivity
| Parameter | Specification |
|---|---|
| Part Number | 74942400 |

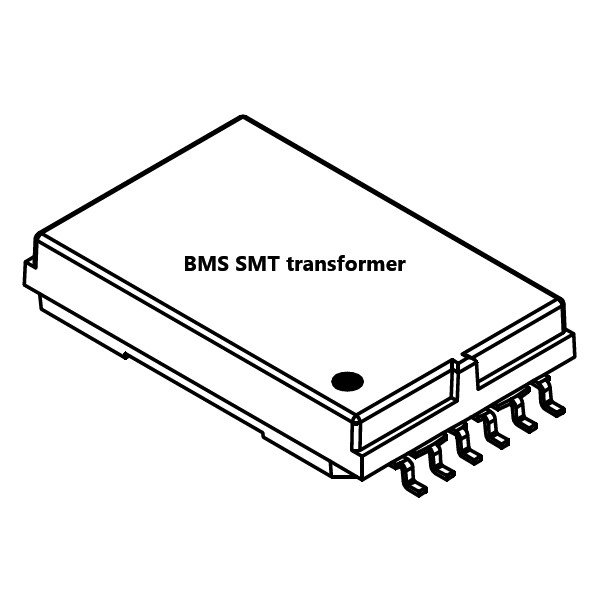

| Type | SMT Transformer for BMS |
| Turns Ratio | 1:1 |
| Operating Voltage | Up to 1500V DC |
| Insulation Voltage | 6400V DC (1min, primary to secondary) |
| Operating Temperature | -40°C to +125°C |
| Safety Standards | AEC-Q200 Qualified |
| Environmental Compliance | RoHS Compliant |
| Mounting Type | Surface Mount (SMT) |
| Pin Configuration | 12-pin |
| Key Feature | Low-loss design |
| High safety distance | |
| Applications | Battery Management Systems (BMS) |
| Energy Storage Systems | |
| Electric Vehicles |
